2494822-1 - TE Connectivity

Description: 1 Port, Micro HDMI Connector, Right Angle, Edge Mount, Surface Mount, 19 Position, .4 mm [.015 in] Centerline, -25 – 85 °C [-13 – 185 °F]

Download 2494822-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

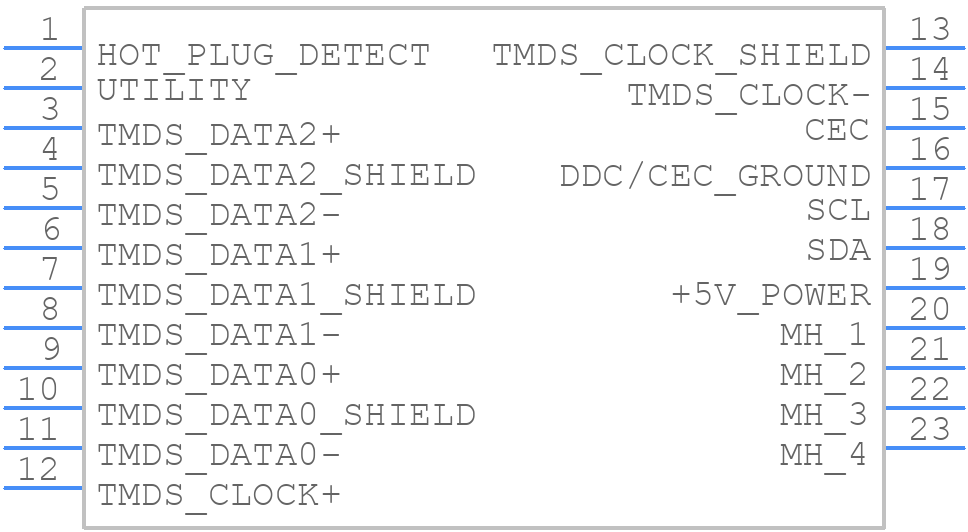

2494822-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
2494822-1 - TE Connectivity PCB footprint - Other - Other - 2494822-1-3
click to zoom
3D Models
2494822-1 - TE Connectivity - 3D model - Other - 2494822-1-3
click to zoom

2494822-1 Details

  • Manufacturer Part Number:

    2494822-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • Connector Type:

    HDMI CONNECTOR

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2494822-1 Overview

Use the download button to access the 2494822-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 24948, or try a keyword search, such as Telecom and Datacom Connectors
