24AA512-I/ST14 - Microchip

Description: EEPROM 64kx8 - 1.8V

Download 24AA512-I/ST14 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

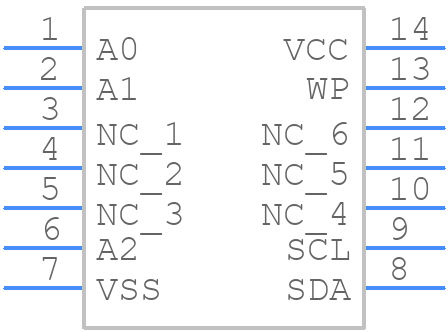

24AA512-I/ST14 - Microchip - PCB symbol
click to zoom
PCB Footprints
24AA512-I/ST14 - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 14-Lead Plastic Thin Shrink Small Outline (ST)--0
click to zoom
3D Models
24AA512-I/ST14 - Microchip - 3D model - Small Outline Packages - 14-Lead Plastic Thin Shrink Small Outline (ST)--0
click to zoom

24AA512-I/ST14 Details

  • Manufacturer Part Number:

    24AA512-I/ST14

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    TSSOP-14

  • Country Of Origin:

    Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Clock Frequency-Max (fCLK):

    0.4 MHz

  • Data Retention Time-Min:

    200

  • Endurance:

    1000000 Write/Erase Cycles

  • I2C Control Byte:

    1010DDDR

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Memory Density:

    524288 bit

  • Memory IC Type:

    EEPROM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Number of Words:

    65536 words

  • Number of Words Code:

    64000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64KX8

  • Output Characteristics:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Programming Voltage:

    2.5 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Serial Bus Type:

    I2C

  • Standby Current-Max:

    0.000001 A

  • Supply Current-Max:

    0.005 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4.4 mm

  • Write Cycle Time-Max (tWC):

    5 ms

  • Write Protection:

    HARDWARE
