24C02C-E/MS - Microchip

Description: EEPROM 256x8

Download 24C02C-E/MS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

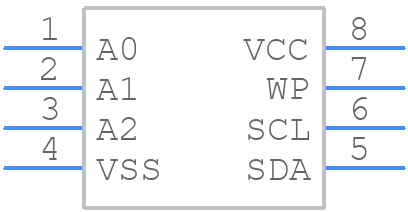

Symbol
24C02C-E/MS - Microchip - PCB symbol
click to zoom
PCB Footprints
24C02C-E/MS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-LEAD PLASTIC MICRO SMAALL OUTLINE PACKAGE (UA) [MSOP]
click to zoom

24C02C-E/MS Details

  • Manufacturer Part Number:

    24C02C-E/MS

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Clock Frequency-Max (fCLK):

    0.1 MHz

  • Data Retention Time-Min:

    200

  • Endurance:

    1000000 Write/Erase Cycles

  • I2C Control Byte:

    1010DDDR

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Memory Density:

    2048 bit

  • Memory IC Type:

    EEPROM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    8

  • Number of Words:

    256 words

  • Number of Words Code:

    256

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    256X8

  • Output Characteristics:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Programming Voltage:

    5 V

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.1 mm

  • Serial Bus Type:

    I2C

  • Standby Current-Max:

    0.000005 A

  • Supply Current-Max:

    0.003 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

  • Write Cycle Time-Max (tWC):

    1.5 ms

  • Write Protection:

    HARDWARE

24C02C-E/MS Frequently Asked Questions (FAQs)

  • The 24C02C-E/MS has a maximum of 1 million write cycles, with a minimum of 100,000 write cycles guaranteed.
  • The 24C02C-E/MS uses a page write buffer to handle page writes. The buffer is 16 bytes long, and the device can perform a page write in 5ms (typical) or 10ms (maximum).
  • The WP (Write Protect) pin is used to prevent writes to the entire memory array or to specific blocks of memory. When the WP pin is tied to VCC, the entire memory array is write-protected. When the WP pin is tied to GND, the memory array is not write-protected.
  • The 24C02C-E/MS has a built-in power-on reset circuit that resets the device when power is applied. During power-down, the device enters a low-power standby mode to conserve power.
  • The 24C02C-E/MS operates over a voltage range of 2.5V to 5.5V, with a typical operating voltage of 3.3V or 5V.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

24C02C-E/MS Overview

Use the download button to access the 24C02C-E/MS schematic symbol and PCB footprint.
