24CW160T-I/MUY - Microchip

Description: EEPROM 1.6-5.5V, 1MHz, Ind Tmp, 8-UDFN

Download 24CW160T-I/MUY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

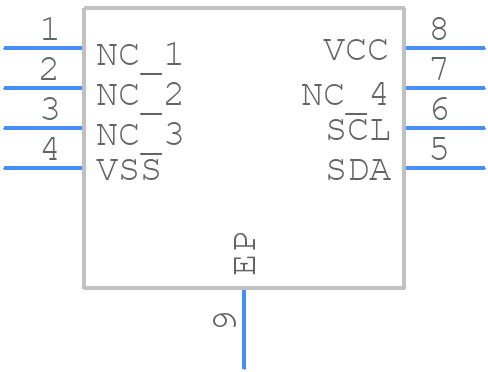

24CW160T-I/MUY - Microchip - PCB symbol
click to zoom
PCB Footprints
24CW160T-I/MUY - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-UDFN
click to zoom
3D Models
24CW160T-I/MUY - Microchip - 3D model - Small Outline No-lead - 8-UDFN
click to zoom

24CW160T-I/MUY Details

  • Manufacturer Part Number:

    24CW160T-I/MUY

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    UDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    UDFN-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Clock Frequency-Max (fCLK):

    1 MHz

  • Data Retention Time-Min:

    200

  • Endurance:

    1000000 Write/Erase Cycles

  • I2C Control Byte:

    1010000R

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Memory Density:

    16384 bit

  • Memory IC Type:

    EEPROM

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    8

  • Number of Words:

    2048 words

  • Number of Words Code:

    2000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    2KX8

  • Output Characteristics:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.11,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    0.55 mm

  • Serial Bus Type:

    I2C

  • Standby Current-Max:

    0.000001 A

  • Supply Current-Max:

    0.001 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.6 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

  • Write Cycle Time-Max (tWC):

    5 ms

  • Write Protection:

    SOFTWARE

24CW160T-I/MUY Frequently Asked Questions (FAQs)

  • Microchip recommends following the PCB layout guidelines in the '24CW160T-I/MUY Evaluation Board User's Guide' (DS50002414A) to minimize noise and ensure reliable operation. This includes using a solid ground plane, separating analog and digital signals, and using decoupling capacitors.
  • The recommended pull-up resistor value for the I2C bus depends on the bus speed, cable length, and number of devices. A good starting point is to use a 2.2 kΩ pull-up resistor for standard-mode I2C (up to 100 kHz) and 1 kΩ for fast-mode I2C (up to 400 kHz). You can also use the I2C bus pull-up resistor calculator tool provided by Microchip.
  • The 24CW160T-I/MUY has an operating temperature range of -40°C to +85°C. The device's performance may degrade at higher temperatures, with a maximum clock frequency reduction of 10% at 85°C. Ensure proper thermal management and consider derating the device's performance at higher temperatures.
  • The 24CW160T-I/MUY has a built-in POR and BOR circuitry. During power-up, ensure a monotonic power supply ramp-up to avoid false resets. During power-down, ensure a gradual power supply ramp-down to prevent unwanted writes to the EEPROM. You can also use external reset circuitry to control the power-up and power-down sequences.
  • For high-reliability or safety-critical applications, consider using the 24CW160T-I/MUY in conjunction with error detection and correction mechanisms, such as CRC or ECC. Also, ensure proper device testing, validation, and qualification according to the relevant industry standards and regulations.
