24CW160T-I/SN - Microchip

Description: EEPROM 16 Kbit I2C Serial EEPROM with Software Write Protection, Industrial Temp

Download 24CW160T-I/SN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

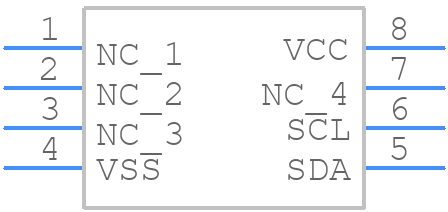

24CW160T-I/SN - Microchip - PCB symbol
click to zoom
PCB Footprints
24CW160T-I/SN - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - SOIC _8 NAROW
click to zoom
3D Models
24CW160T-I/SN - Microchip - 3D model - Small Outline Packages - SOIC _8 NAROW
click to zoom

24CW160T-I/SN Details

  • Manufacturer Part Number:

    24CW160T-I/SN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Access Time-Max:

    450 ns

  • Additional Feature:

    DATA RETENTION TIME @ 55 DEGREE CENTIGRADE

  • Clock Frequency-Max (fCLK):

    1 MHz

  • Data Retention Time-Min:

    200

  • Endurance:

    1000000 Write/Erase Cycles

  • I2C Control Byte:

    1010000R

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Memory Density:

    16384 bit

  • Memory IC Type:

    EEPROM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    8

  • Number of Words:

    2048 words

  • Number of Words Code:

    2000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    2KX8

  • Output Characteristics:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Programming Voltage:

    1.8 V

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Serial Bus Type:

    I2C

  • Standby Current-Max:

    0.000001 A

  • Supply Current-Max:

    0.001 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.6 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

  • Write Cycle Time-Max (tWC):

    5 ms

  • Write Protection:

    SOFTWARE
