24CW320-I/SN - Microchip

Description: • 16/32/64-Kbit EEPROM: - Internally organized as one 2048/4096/8192 x 8 bit block - Byte or page writes up to 32 bytes - Byte or sequential reads within a block - Self-timed write cycle (5 ms maximum) • High-Speed I2C Interface: - Industry standard: 1 MHz, 400 kHz and 100 kHz - Output slope control to eliminate ground bounce - Schmitt trigger inputs for noise suppression • Programmable Hardware Slave Address Bits: - Configurable via the Hardware Address Register (HAR) • Versatile Data Protec

Download 24CW320-I/SN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

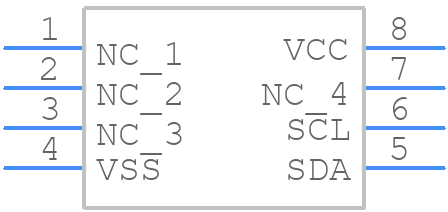

24CW320-I/SN - Microchip - PCB symbol
click to zoom
PCB Footprints
24CW320-I/SN - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-LEAD PLASTIC SMALL OUTLINE(SN)-Narrow, 3.90 mm Body [SOIC]
click to zoom
3D Models
24CW320-I/SN - Microchip - 3D model - Small Outline Packages - 8-LEAD PLASTIC SMALL OUTLINE(SN)-Narrow, 3.90 mm Body [SOIC]
click to zoom

24CW320-I/SN Details

  • Manufacturer Part Number:

    24CW320-I/SN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Access Time-Max:

    450 ns

  • Additional Feature:

    DATA RETENTION TIME @ 55 DEGREE CENTIGRADE

  • Clock Frequency-Max (fCLK):

    1 MHz

  • Data Retention Time-Min:

    200

  • Endurance:

    1000000 Write/Erase Cycles

  • I2C Control Byte:

    1010000R

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Memory Density:

    32768 bit

  • Memory IC Type:

    EEPROM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    8

  • Number of Words:

    4096 words

  • Number of Words Code:

    4000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    4KX8

  • Output Characteristics:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Programming Voltage:

    1.8 V

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Serial Bus Type:

    I2C

  • Standby Current-Max:

    0.000001 A

  • Supply Current-Max:

    0.001 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.6 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

  • Write Cycle Time-Max (tWC):

    5 ms

  • Write Protection:

    SOFTWARE

24CW320-I/SN Frequently Asked Questions (FAQs)

  • The maximum clock frequency for the 24CW320-I/SN is 400 kHz.
  • To ensure reliable data transfer, use a pull-up resistor on the SCL and SDA lines, and ensure that the bus capacitance is within the recommended range (400 pF).
  • The minimum operating voltage is 1.7V, and the maximum operating voltage is 5.5V.
  • Page writes are limited to 32 bytes, and block writes are limited to 64 bytes. Use the page write and block write commands as specified in the datasheet to ensure correct operation.
  • The WP (Write Protect) pin is used to prevent writes to the entire memory array or specific blocks. When WP is low, writes are allowed; when WP is high, writes are inhibited.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

24CW320-I/SN Overview

Use the download button to access the 24CW320-I/SN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 24CW3, or try a keyword search, such as EEPROMs
