24LC024-I/MS - Microchip

Description: 2K, 256 X 8 SERIAL EEPROM, IND

Download 24LC024-I/MS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

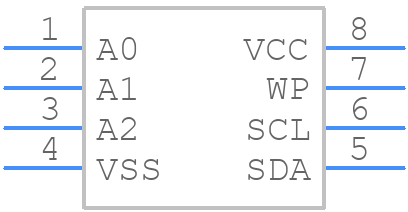

24LC024-I/MS - Microchip - PCB symbol
click to zoom
PCB Footprints
24LC024-I/MS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-LEAD PLASTIC MICRO SMALL OUTLINE PACKAGE (MS) [MSOP]
click to zoom
3D Models
24LC024-I/MS - Microchip - 3D model - Small Outline Packages - 8-LEAD PLASTIC MICRO SMALL OUTLINE PACKAGE (MS) [MSOP]
click to zoom

24LC024-I/MS Details

  • Manufacturer Part Number:

    24LC024-I/MS

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Clock Frequency-Max (fCLK):

    0.4 MHz

  • Data Retention Time-Min:

    200

  • Endurance:

    1000000 Write/Erase Cycles

  • I2C Control Byte:

    1010DDDR

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Memory Density:

    2048 bit

  • Memory IC Type:

    EEPROM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    8

  • Number of Words:

    256 words

  • Number of Words Code:

    256

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    256X8

  • Output Characteristics:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Programming Voltage:

    5 V

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.1 mm

  • Serial Bus Type:

    I2C

  • Standby Current-Max:

    0.000001 A

  • Supply Current-Max:

    0.003 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

  • Write Cycle Time-Max (tWC):

    5 ms

  • Write Protection:

    HARDWARE

24LC024-I/MS Frequently Asked Questions (FAQs)

  • The 24LC024-I/MS has a minimum of 1 million write cycles, but the actual number of write cycles may vary depending on the usage and operating conditions.
  • The 24LC024-I/MS uses a page write buffer to handle page writes. For block writes, the device uses a block write buffer that can handle up to 32 bytes of data. The device automatically handles page and block writes, and the host controller only needs to send the write command and data.
  • The WP (Write Protect) pin is used to prevent accidental writes to the device. When the WP pin is tied to VCC, the device is in write-protect mode, and any attempt to write to the device will be ignored.
  • The 24LC024-I/MS has a built-in power-on reset circuit that ensures the device is in a known state after power-up. The device can be powered up and down in any sequence, but it's recommended to power up the device before the host controller to ensure proper operation.
  • The 24LC024-I/MS has a maximum clock frequency of 400 kHz, but it can operate at lower frequencies as well. The device can also operate in a 'fast mode' with a clock frequency of up to 1 MHz.
