24LC16B-I/MS - Microchip

Description: 16K, 2K X 8 2.5V SERIAL EEPROM, IND

Download 24LC16B-I/MS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

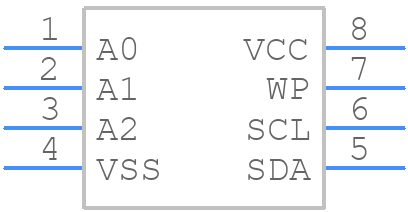

24LC16B-I/MS - Microchip - PCB symbol
click to zoom
PCB Footprints
24LC16B-I/MS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - /MS
click to zoom
3D Models
24LC16B-I/MS - Microchip - 3D model - Small Outline Packages - /MS
click to zoom

24LC16B-I/MS Details

  • Manufacturer Part Number:

    24LC16B-I/MS

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Memory IC Type:

    EEPROM

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    40

24LC16B-I/MS Frequently Asked Questions (FAQs)

  • The 24LC16B-I/MS has a maximum of 1,000,000 write cycles, with a minimum of 100,000 write cycles guaranteed.
  • The 24LC16B-I/MS uses a page write buffer to handle page writes. The device can write up to 16 bytes of data in a single page write operation.
  • The WP (Write Protect) pin is used to prevent writes to the entire memory array. When the WP pin is tied to VCC, the entire memory array is write-protected.
  • Yes, the 24LC16B-I/MS is 5V tolerant, but it is recommended to use a voltage regulator to ensure a stable 2.5V supply to the device.
  • The 24LC16B-I/MS has a built-in power-on reset circuit that resets the device to a known state after power-up.
