24LC16BT-E/MNY - Microchip

Description: • Single Supply with Operation down to 1.7V for 24AA16 and 24FC16 Devices, 2.5V for 24LC16B Devices • Low-Power CMOS Technology: - Read current 1 mA, maximum - Standby current 1 µA, maximum (I-Temp.) • Two-Wire Serial Interface, I2C Compatible • Schmitt Trigger Inputs for Noise Suppression • Output Slope Control to Eliminate Ground Bounce • 100 kHz, 400 kHz and 1 MHz Compatibility • Page Write Time: 5 ms, Maximum • Self-Timed Erase/Write Cycle • 16-Byte Page Write Buffer • Hardware Write-Protec

Download 24LC16BT-E/MNY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

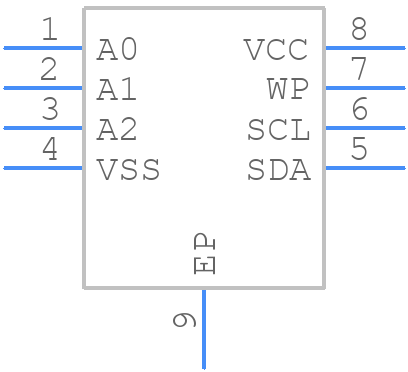

24LC16BT-E/MNY - Microchip - PCB symbol
click to zoom
PCB Footprints
24LC16BT-E/MNY - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - Plastic Dual Flat, No Lead Package – 2x3x0.8mm Body, 8-Lead (TDFN)
click to zoom
3D Models
24LC16BT-E/MNY - Microchip - 3D model - Small Outline No-lead - Plastic Dual Flat, No Lead Package – 2x3x0.8mm Body, 8-Lead (TDFN)
click to zoom

24LC16BT-E/MNY Details

  • Manufacturer Part Number:

    24LC16BT-E/MNY

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN

  • Pin Count:

    8

  • Manufacturer Package Code:

    TDFN-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Memory IC Type:

    EEPROM

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    40

24LC16BT-E/MNY Frequently Asked Questions (FAQs)

  • The 24LC16BT-E/MNY has a minimum of 1 million write cycles, but the actual number of write cycles may vary depending on the application and usage.
  • The 24LC16BT-E/MNY uses a page write buffer to handle page writes. The device can perform page writes of up to 16 bytes. For block writes, the device uses a block write buffer that can handle up to 128 bytes. The device automatically handles page and block writes based on the address and data provided.
  • The WP (Write Protect) pin is used to prevent writes to the entire device or a specific block of memory. When the WP pin is tied to VCC, the entire device is write-protected. When the WP pin is tied to a specific block address, only that block is write-protected.
  • The 24LC16BT-E/MNY requires a specific power-up and power-down sequencing to ensure proper operation. The device should be powered up with VCC rising before the SCL clock signal, and powered down with VCC falling before the SCL clock signal.
  • The 24LC16BT-E/MNY has a maximum clock frequency of 400 kHz for standard mode and 1 MHz for fast mode.
