24S15.10HEW - CALEX

Description: Module DC-DC 24VIN 1-OUT 15V 10A 150W 9-Pin Half-Brick

Download 24S15.10HEW Model

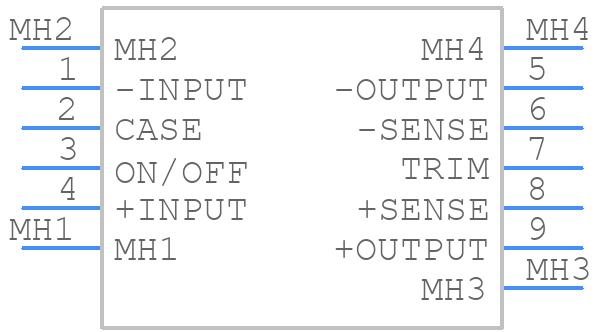

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

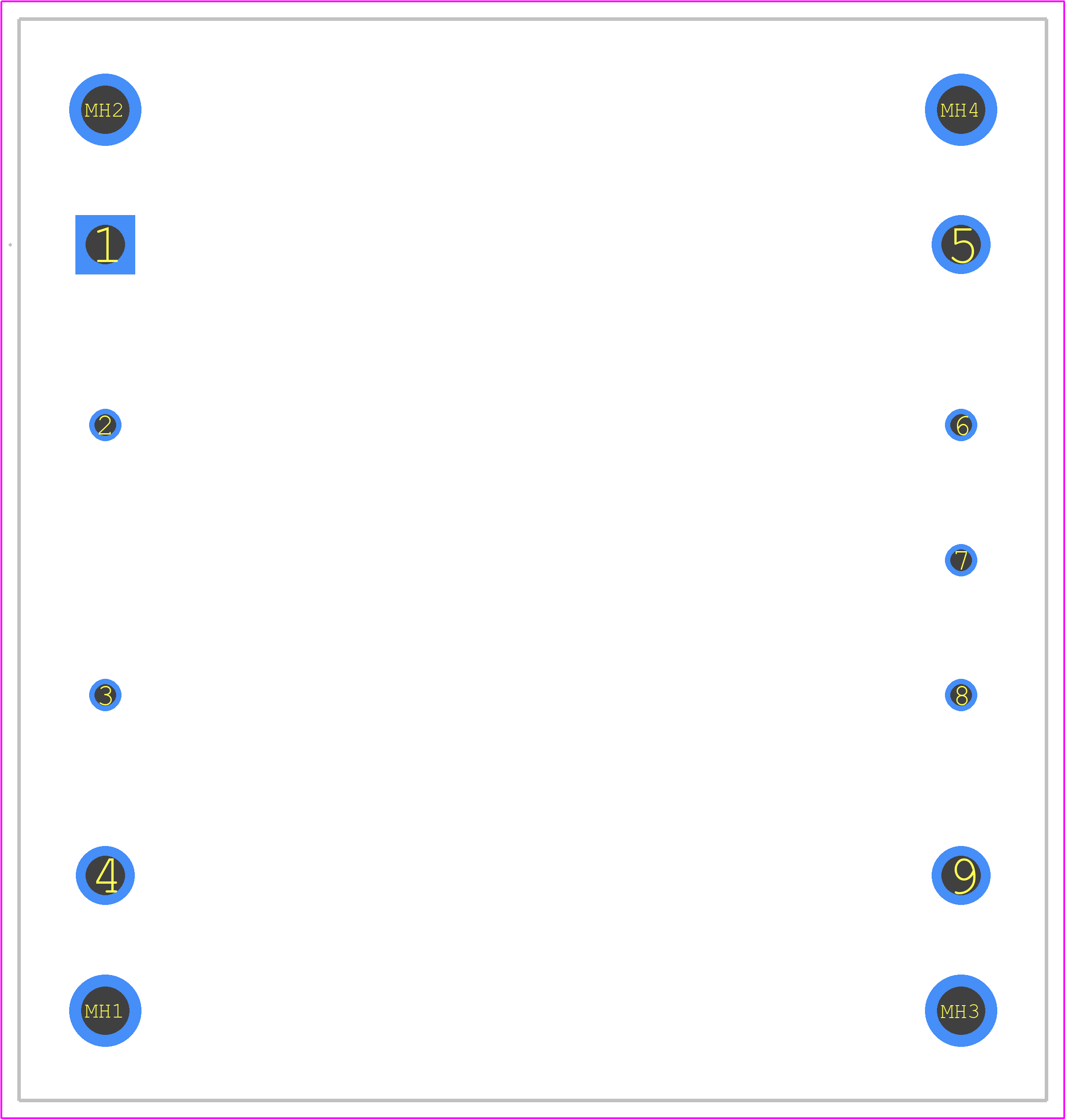

PCB Footprints
24S15.10HEW - CALEX PCB footprint - Other - Other - 24S15.10HEW-2
click to zoom
3D Models
24S15.10HEW - CALEX  - 3D model - Other - 24S15.10HEW-2
click to zoom

24S15.10HEW Details

  • Manufacturer Part Number:

    24S15.10HEW

  • Part Life Cycle Code:

    Contact Manufacturer

  • Part Package Code:

    MODULE

  • Package Description:

    PACKAGE-9

  • Pin Count:

    9

  • ECCN Code:

    EAR99

  • Manufacturer:

    Calex Mfg Co Inc

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P9

  • Length:

    60.96 mm

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Output Voltage-Max:

    16.5 V

  • Output Voltage-Min:

    13.5 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    13.97 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    150 W

  • Trim/Adjustable Output:

    YES

  • Width:

    57.912 mm

24S15.10HEW Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad with a minimum size of 10mm x 10mm, and ensuring a minimum of 2oz copper thickness. Additionally, it's recommended to have a solid copper pour on the top and bottom layers to dissipate heat efficiently.
  • To ensure reliable operation in high-vibration environments, it's recommended to secure the device using a screw or adhesive that can withstand the expected vibration levels. Additionally, consider using a conformal coating to protect the device from moisture and contaminants.
  • The maximum allowable voltage deviation for stable operation is ±10% of the nominal input voltage. Exceeding this deviation may affect the device's performance and reliability.
  • Yes, the 24S15.10HEW can be used in a redundant or parallel configuration to achieve higher power ratings or improved reliability. However, it's essential to ensure that the devices are properly synchronized and that the system is designed to handle the increased power and thermal requirements.
  • The typical lead time for production orders of the 24S15.10HEW is 8-12 weeks, depending on the quantity and availability of components. It's recommended to check with Calex Mfg Co Inc or an authorized distributor for the most up-to-date lead time information.
