The recommended PCB layout involves placing the device on a multi-layer board with a solid ground plane, and using thermal vias to dissipate heat. A minimum of 2 oz copper thickness is recommended. Additionally, a heat sink or thermal pad can be used to further improve thermal management.
To ensure reliable operation in high-vibration environments, it's recommended to use a secure mounting method, such as screwing or adhesive mounting, and to follow the manufacturer's recommended torque specifications. Additionally, using a vibration-dampening material, such as a silicone adhesive, can help reduce the impact of vibrations.
Operating the device outside of the recommended temperature range can lead to reduced performance, accuracy, and reliability. It may also cause the device to malfunction or fail prematurely. It's essential to ensure that the device operates within the recommended temperature range to maintain optimal performance and longevity.
To troubleshoot common issues, start by verifying the input voltage, output load, and PCB layout. Check for any signs of overheating, and ensure that the device is properly mounted and secured. Use an oscilloscope to measure the output voltage and identify any noise or instability. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
When handling and storing the device, it's essential to follow proper electrostatic discharge (ESD) precautions, such as using an ESD wrist strap or mat. Avoid touching the device's pins or components, and store the device in a dry, cool environment, away from direct sunlight and moisture.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
24S5.2000NT Overview

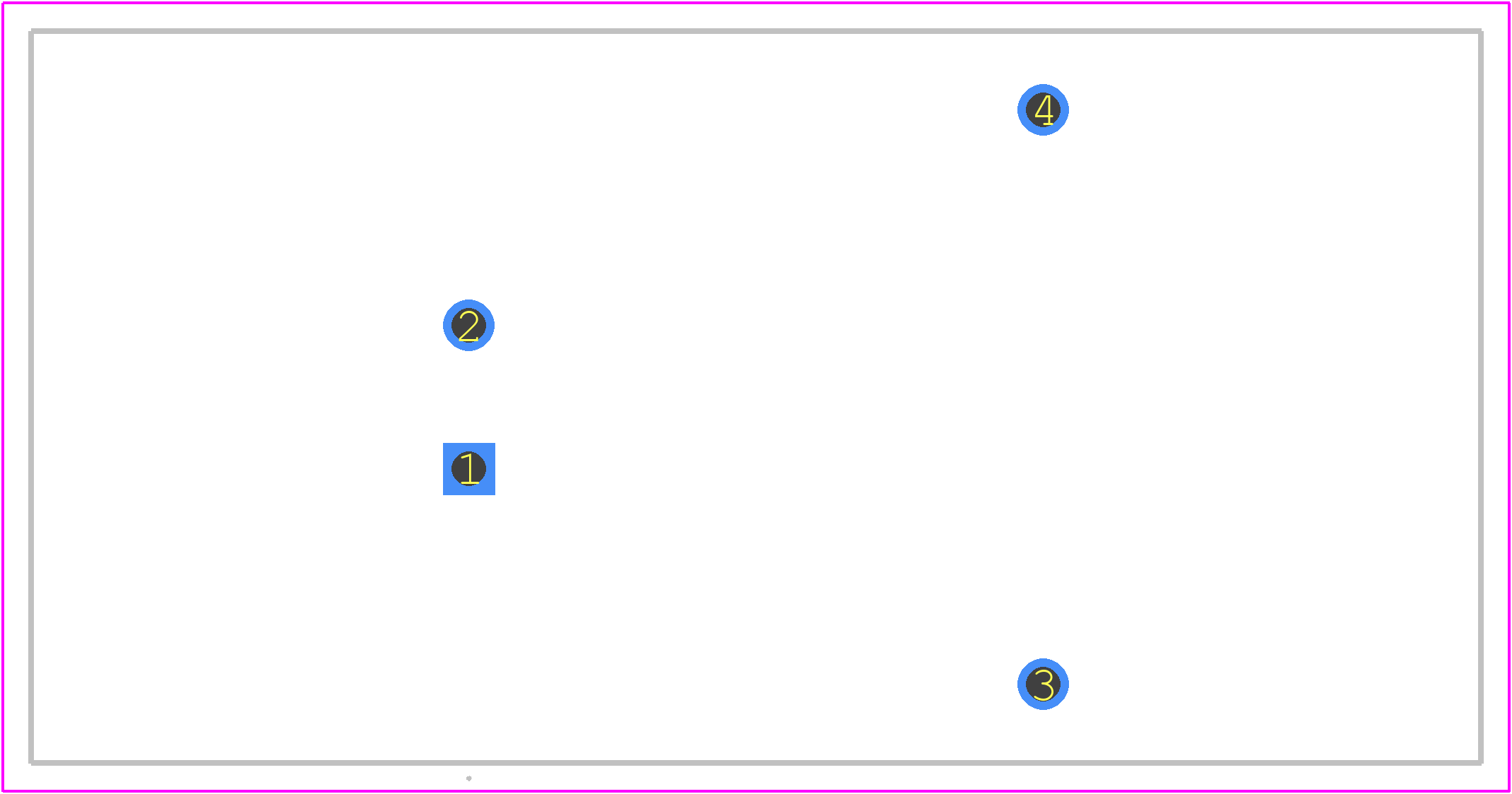

Use the download button to access the 24S5.2000NT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 24S5.,
or try a keyword search, such as Power Supply Modules
