24S5.6000MHW - CALEX

Description: 30 Watt MH/MHW Single Series DC/DC Converters

Download 24S5.6000MHW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
24S5.6000MHW - CALEX - PCB symbol
click to zoom
PCB Footprints

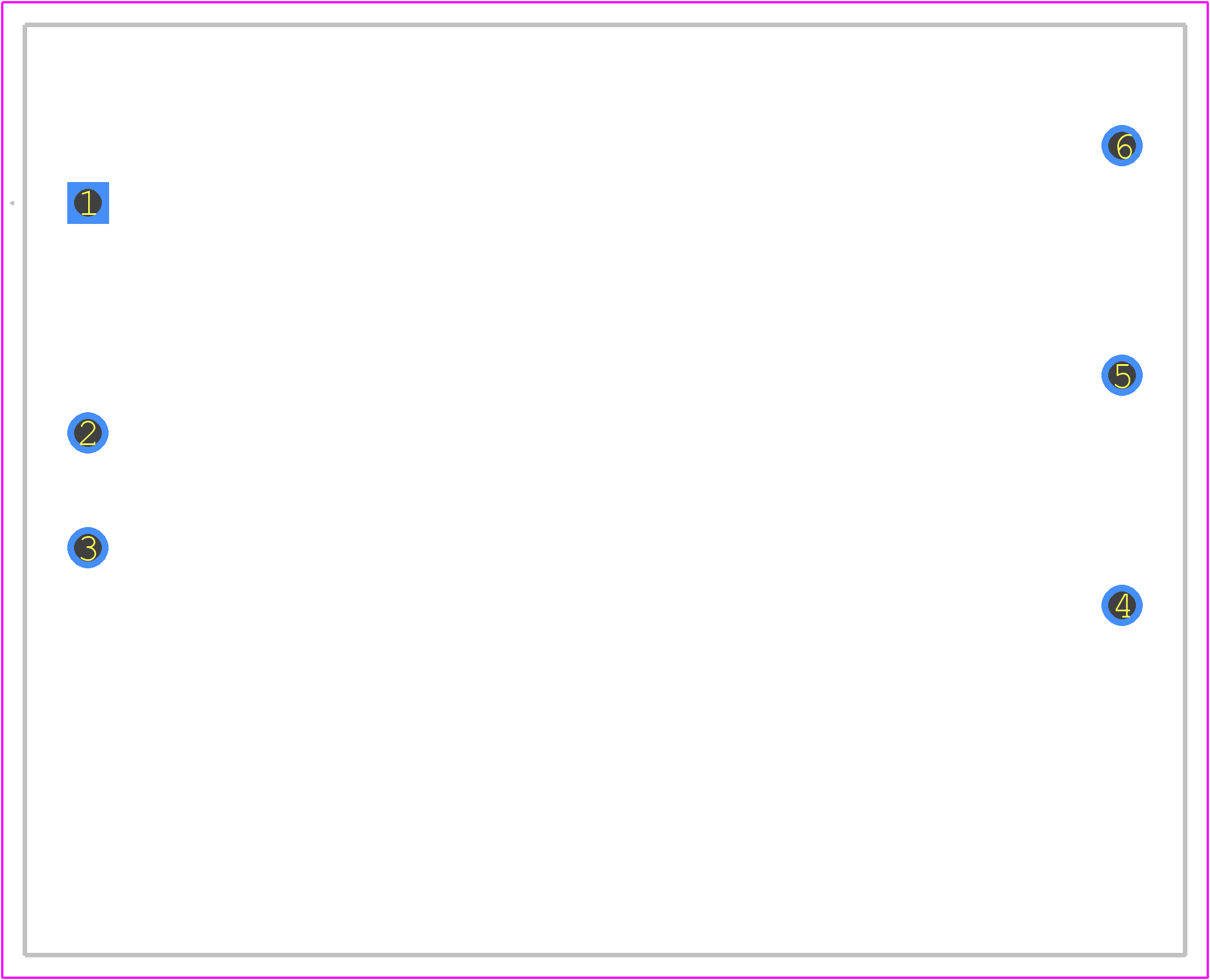

24S5.6000MHW - CALEX PCB footprint - Other - Other - 24S5.6000MHW-1
click to zoom
3D Models
24S5.6000MHW - CALEX - 3D model - Other - 24S5.6000MHW-1
click to zoom

24S5.6000MHW Details

  • Manufacturer Part Number:

    24S5.6000MHW

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Contact Manufacturer

  • Part Package Code:

    MODULE

  • Package Description:

    PACKAGE-6

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • Manufacturer:

    Calex Mfg Co Inc

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P6

  • Load Regulation-Max:

    1%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Output Current-Max:

    6 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    4.5 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,6LEAD,1.8

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    30 W

  • Trim/Adjustable Output:

    YES

24S5.6000MHW Frequently Asked Questions (FAQs)

  • The operating temperature range for the 24S5.6000MHW is -40°C to +85°C, as specified by the manufacturer.
  • Yes, the 24S5.6000MHW is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
  • The typical lead time for delivery of the 24S5.6000MHW varies depending on the quantity and availability, but it's usually around 4-6 weeks. It's best to check with the manufacturer or authorized distributor for the most up-to-date information.
  • Yes, the 24S5.6000MHW is designed to withstand high-vibration environments, making it suitable for use in applications such as industrial control systems, transportation systems, and more.
  • Yes, the 24S5.6000MHW is designed to meet the requirements of MIL-STD-202, which specifies the test methods and procedures for electronic components used in military applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

24S5.6000MHW Overview

Use the download button to access the 24S5.6000MHW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 24S5., or try a keyword search, such as Power Supply Modules
