250-1412 - Wago

Description: PCB terminal block; push-button; 0.5 mm²; Pin spacing 2.54 mm; 12-pole; Push-in CAGE CLAMP®

Download 250-1412 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
250-1412 - Wago - PCB symbol
click to zoom
PCB Footprints

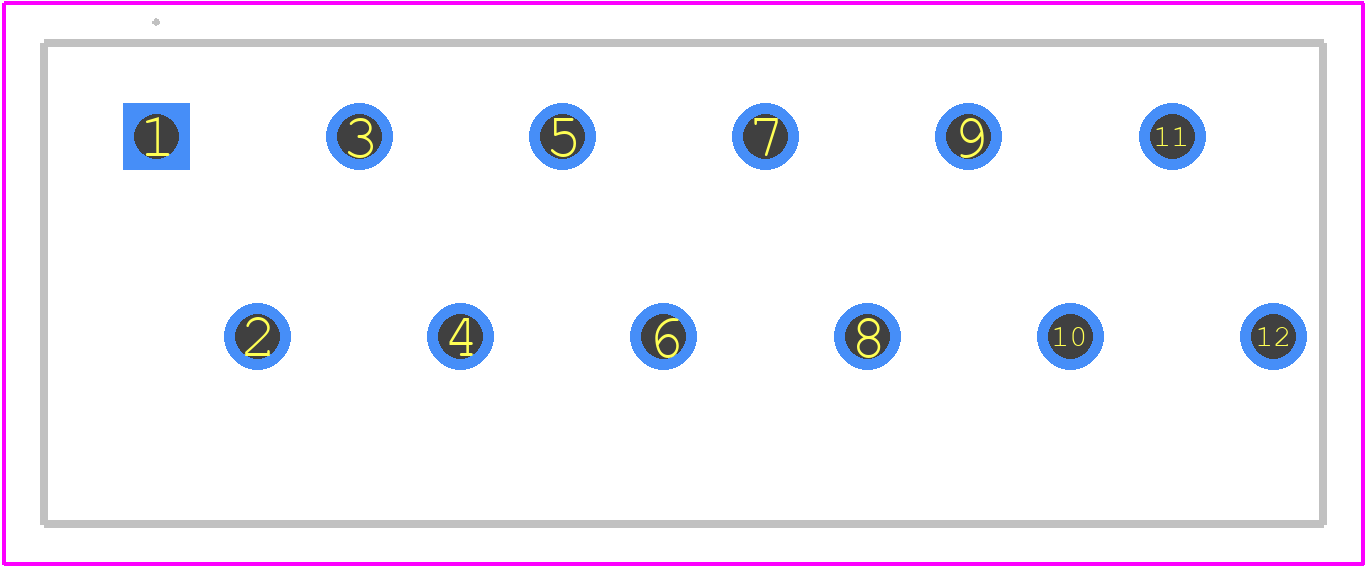

250-1412 - Wago PCB footprint - Other - Other - 250-1412-1
click to zoom
3D Models
250-1412 - Wago - 3D model - Other - 250-1412-1
click to zoom

250-1412 Details

  • Manufacturer Part Number:

    250-1412

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • Mounting Type:

    BOARD

  • Number of Ways:

    12

  • Rated Current:

    2 A

  • Rated Voltage:

    300 V

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Gauge:

    20 AWG

250-1412 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.6 Nm to 0.8 Nm (5.3 in-lbs to 7.1 in-lbs).
  • Yes, the WAGO 250-1412 is designed to withstand high vibrations and meets the requirements of IEC 61373 Cat 1 Class B.
  • Yes, the WAGO 250-1412 has a protection rating of IP67, making it suitable for outdoor use and resistant to dust and water ingress.
  • Yes, the WAGO 250-1412 is designed for use with both solid and stranded wire, with a wire size range of 0.5 mm² to 2.5 mm² (20 AWG to 14 AWG).
  • Yes, the WAGO 250-1412 is part of the WAGO TOPJOB S rail-mounted terminal block system and is compatible with other WAGO products in this series.
