250-212 - Wago

Description: Wago 250 Series, Female 12 Pole 12 Way PCB Terminal Strip, PCB Mount, Rated At 10 (CSA) A, 5 (UL) A, 8 (IEC/EN 60664-1)

Download 250-212 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
250-212 - Wago - PCB symbol
click to zoom
PCB Footprints

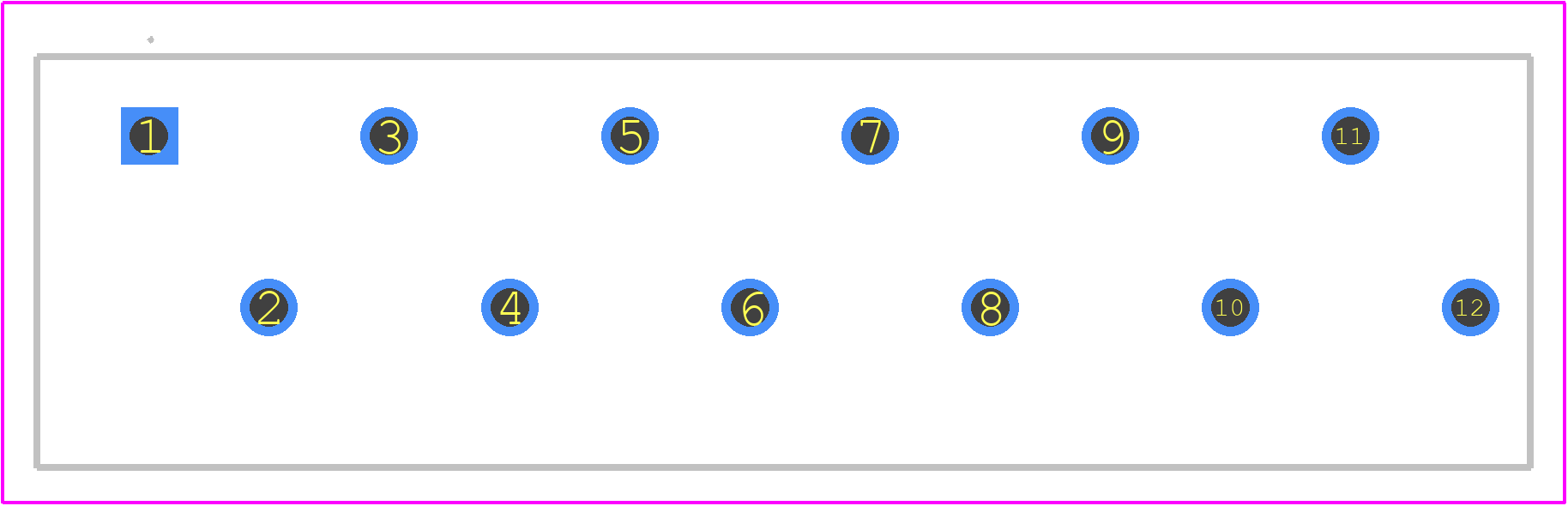

250-212 - Wago PCB footprint - Other - Other - 250-212/000-012-1
click to zoom
3D Models
250-212 - Wago - 3D model - Other - 250-212/000-012-1
click to zoom

250-212 Details

  • Manufacturer Part Number:

    250-212

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE66

  • Fastening Method:

    PUSH BUTTON

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    12

  • Rated Current:

    8 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    ABS;CCA;CSA;DNV;IEC;GL;UL;VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    16 AWG

250-212 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw connections is 0.6 Nm to 1.2 Nm (5 in-lbs to 10 in-lbs).
  • Yes, the 250-212 connector is designed for use in harsh environments, including those with high temperatures, humidity, and vibration. It meets the requirements of IP67 and UL94 V-0.
  • The maximum wire size that can be used with the 250-212 connector is 2.5 mm² (AWG 14).
  • Yes, the 250-212 connector is suitable for power applications up to 32 A and 600 V. It is designed for use in industrial power distribution systems, motor connections, and other high-current applications.
  • No, the 250-212 connector is not designed for use in explosive atmospheres. It does not meet the requirements of ATEX or IECEx.

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

250-212 Overview

Use the download button to access the 250-212 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 250-2, or try a keyword search, such as Terminals and Terminal Blocks
