250-506 - Wago

Description: PCB terminal block; push-button; 1.5 mm²; Pin spacing 5 mm; 6-pole; Push-in CAGE CLAMP®

Download 250-506 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
250-506 - Wago - PCB symbol
click to zoom
PCB Footprints

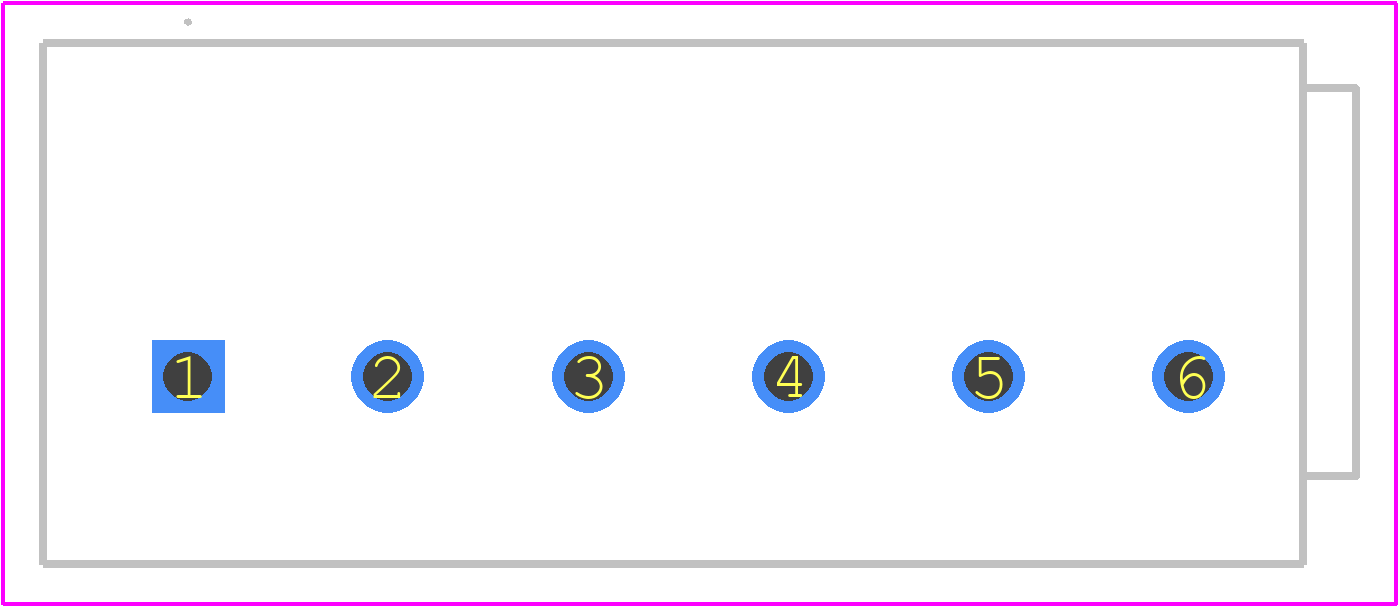

250-506 - Wago PCB footprint - Other - Other - 250-506-2
click to zoom
3D Models
250-506 - Wago - 3D model - Other - 250-506-2
click to zoom

250-506 Details

  • Manufacturer Part Number:

    250-506

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE66

  • Fastening Method:

    PUSH BUTTON

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    ABS;CCA;CSA;DNV;IEC;GL;UL;VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    14 AWG

250-506 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.6 Nm to 1.2 Nm (5 in-lbs to 10 in-lbs).
  • Yes, the 250-506 connector is designed to withstand high-vibration environments. It meets the vibration test requirements of IEC 61373 Cat. 1 Class B.
  • Yes, the 250-506 connector is suitable for outdoor use. It has a rating of IP67, which means it is protected against dust and water ingress.
  • Yes, the 250-506 connector is suitable for use with stranded wire. However, it's recommended to use a wire ferrule to ensure a secure connection.
  • The operating temperature range of the 250-506 connector is -40°C to 125°C (-40°F to 257°F).

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

250-506 Overview

Use the download button to access the 250-506 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 250-5, or try a keyword search, such as Terminals and Terminal Blocks
