250-510 - Wago

Description: PCB terminal block; push-button; 1.5 mm²; Pin spacing 5 mm; 10-pole; Push-in CAGE CLAMP®

Download 250-510 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

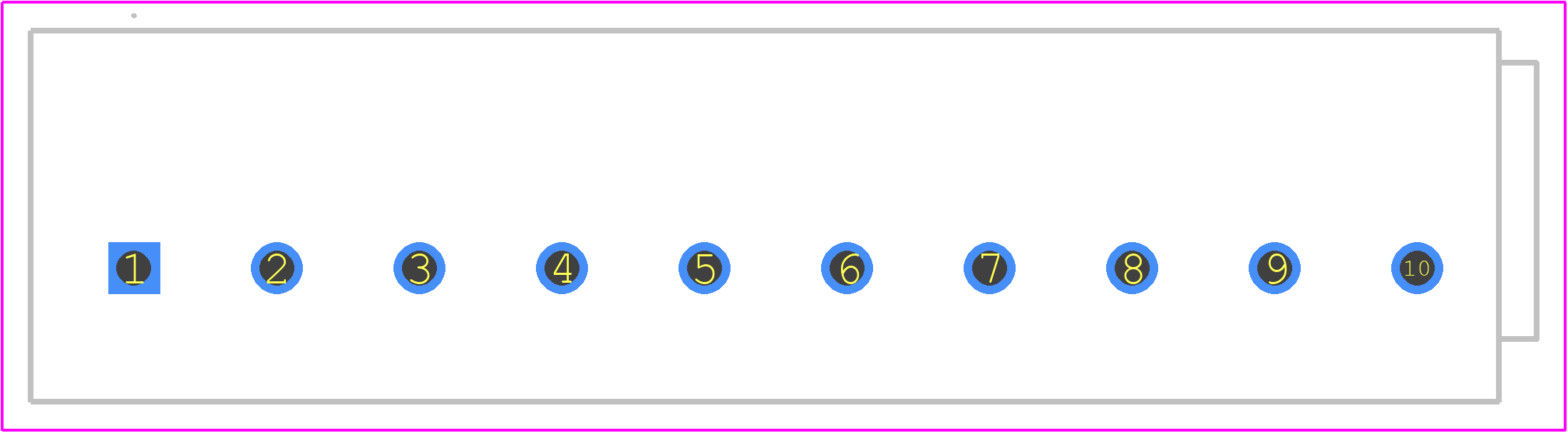

250-510 - Wago PCB footprint - Other - Other - 250-510-1
click to zoom
3D Models
250-510 - Wago  - 3D model - Other - 250-510-1
click to zoom

250-510 Details

  • Manufacturer Part Number:

    250-510

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE66

  • Fastening Method:

    PUSH BUTTON

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    10

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    ABS;CCA;CSA;DNV;IEC;GL;UL;VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    14 AWG

250-510 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm (5 in-lbs to 10 in-lbs) for the screws on the 250-510 connector.
  • Yes, the 250-510 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Cat. 2.
  • Yes, the 250-510 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and humidity levels, making it suitable for use in harsh environments.
  • While the datasheet specifies wire sizes, it is possible to use the 250-510 connector with other wire sizes. However, it is recommended to consult with WAGO's technical support to ensure compatibility and to determine any necessary adjustments to the connector's configuration.
  • To ensure proper wire insertion and termination, follow the instructions provided in the datasheet and use the recommended wire stripping length and insertion tools. Additionally, make sure to inspect the wire termination for proper seating and securement.
