250-714 - Wago

Description: Double-deck PCB terminal block; push-button; 1.5 mm²; Pin spacing 5 mm; 28-pole; Push-in CAGE CLAMP®

Download 250-714 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 250-714 model

Email notifications will be applied after download.

Send part feedback

Symbol

250-714 - Wago - PCB symbol

PCB Footprints

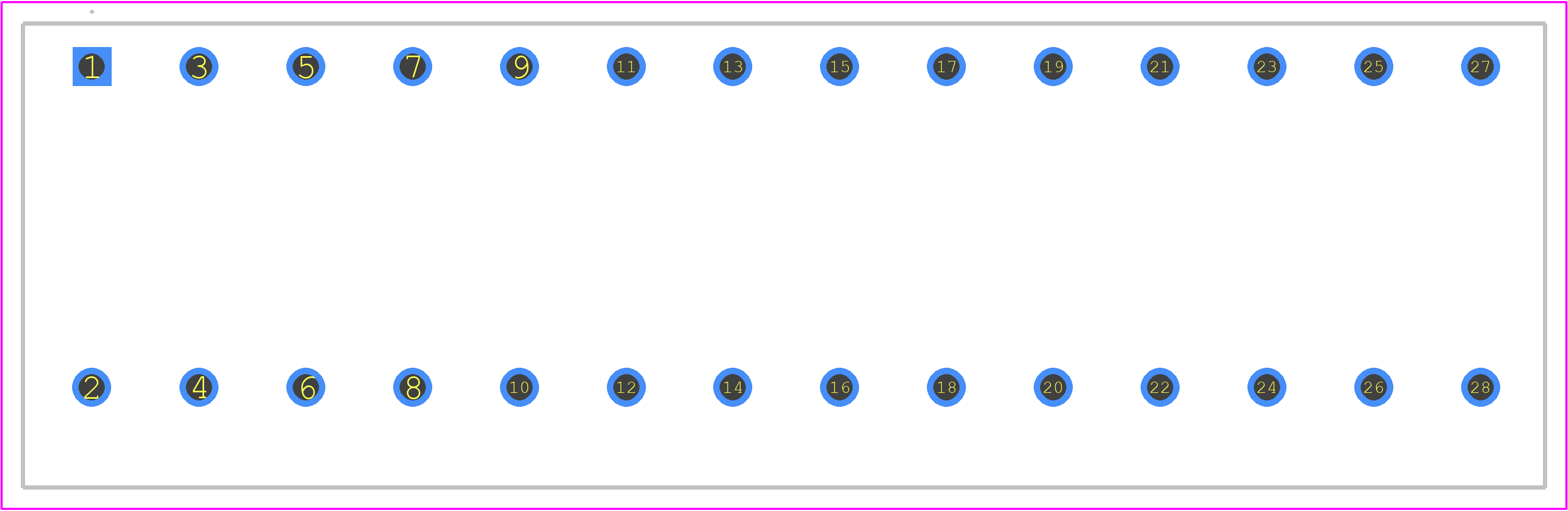

250-714 - Wago PCB footprint - Other - Other - 250-714-1

3D Models

250-714 - Wago - 3D model - Other - 250-714-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for 250-714
Part Number 250-714
Manufacturer Wago
Pin Count 28
Part Category Connector
Package Category Other
Footprint Name Other - 250-714-1
Released Date Feb 12, 2024
Last Modified Date Feb 12, 2024 8:24 AM UTC
Pinout / Pin List Click Here (Member Only)

250-714 Details

Manufacturer Part Number:
250-714
Manufacturer:
WAGO Innovative Connections

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

250-714 Overview

Use the download button to access the 250-714 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 250-7, or try a keyword search, such as Assembly Items
