2510CGT-CQ0 - Renesas Electronics

Description: The 2510C is a high performance, low skew, low jitter clock driver. It uses a phase lock loop (PLL) technology to align, in both phase and frequency, the CLKIN signal with the CLKOUT signal. It is specifically designed for use with synchronous SDRAMs. The 2510C operates at 3.3V VCC and drives up to ten clock loads.

Download 2510CGT-CQ0 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 2510CGT-CQ0 model

Email notifications will be applied after download.

Send part feedback

Symbol

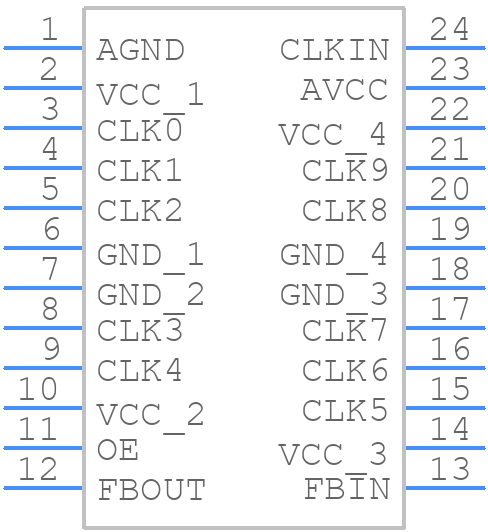

2510CGT-CQ0 - Renesas Electronics - PCB symbol

PCB Footprints

2510CGT-CQ0 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 4.40 mm. Body, 0.65 mm. pitch TSSOP

3D Models

2510CGT-CQ0 - Renesas Electronics - 3D model - Small Outline Packages - 4.40 mm. Body, 0.65 mm. pitch TSSOP

Datasheet Download Datasheet
Stock & Prices Price & Stock for 2510CGT-CQ0
Part Number 2510CGT-CQ0
Manufacturer Renesas Electronics
Pin Count 24
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 4.40 mm. Body, 0.65 mm. pitch TSSOP
Released Date Jun 2, 2021
Last Modified Date Oct 24, 2023 7:30 PM UTC
Pinout / Pin List Click Here (Member Only)

2510CGT-CQ0 Details

Manufacturer Part Number:
2510CGT-CQ0
Brand Name:
Renesas
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
TSSOP
Pin Count:
24
Manufacturer Package Code:
PG24
HTS Code:
8542.39.00.60
Manufacturer:
Renesas Electronics Corporation
YTEOL:
0
Logic IC Type:
PLL BASED CLOCK DRIVER
