2520-6002UB - 3M

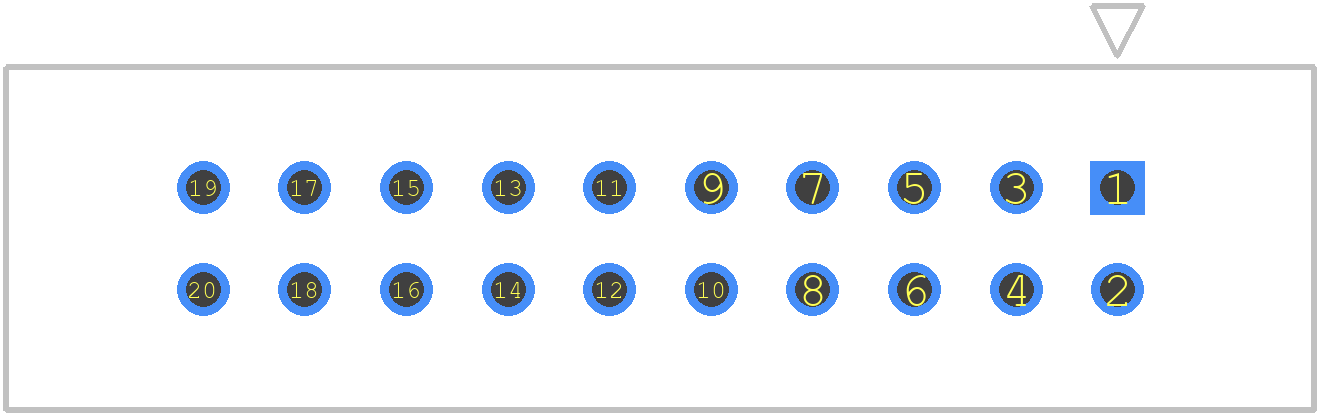

2520-6002UB Details

• Manufacturer Part Number:

  2520-6002UB

• Pbfree Code:

  No

• Rohs Code:

  No

• Part Life Cycle Code:

  Active

• Reach Compliance Code:

  Compliant

• Manufacturer:

  3M Interconnect

• Additional Feature:

  LATCHED, POLARIZED

• Body Breadth:

  0.338 inch

• Body Depth:

  0.38 inch

• Body Length:

  1.288 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  GOLD (30) OVER NICKEL (100)

• Contact Finish Termination:

  TIN LEAD (200) OVER NICKEL (100)

• Contact Gender:

  MALE

• Contact Material:

  COPPER ALLOY

• Contact Pattern:

  RECTANGULAR

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  1400VAC V

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  GRAY

• Insulator Material:

  GLASS FILLED POLYBUTYLENE TEREPHTHALATE

• JESD-609 Code:

  e0

• MIL Conformance:

  NO

• Manufacturer Series:

  2500

• Mating Contact Pitch:

  0.1 inch

• Mating Contact Row Spacing:

  0.1 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  GUIDE SLOT

• Mounting Option 2:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  2.54 mm

• Plating Thickness:

  30u inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  2 A

• Reference Standard:

  UL

• Reliability:

  COMMERCIAL

• Subcategory:

  Headers and Edge Type Connectors

• Terminal Length:

  0.112 inch

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  20

• UL Flammability Code:

  94V-0
