252A103B60NA - CTS

Description: JOYSTICK 10K OHM 2 AXIS TH

Download 252A103B60NA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

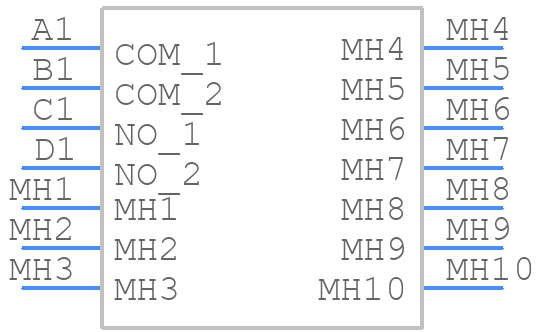

PCB Footprints

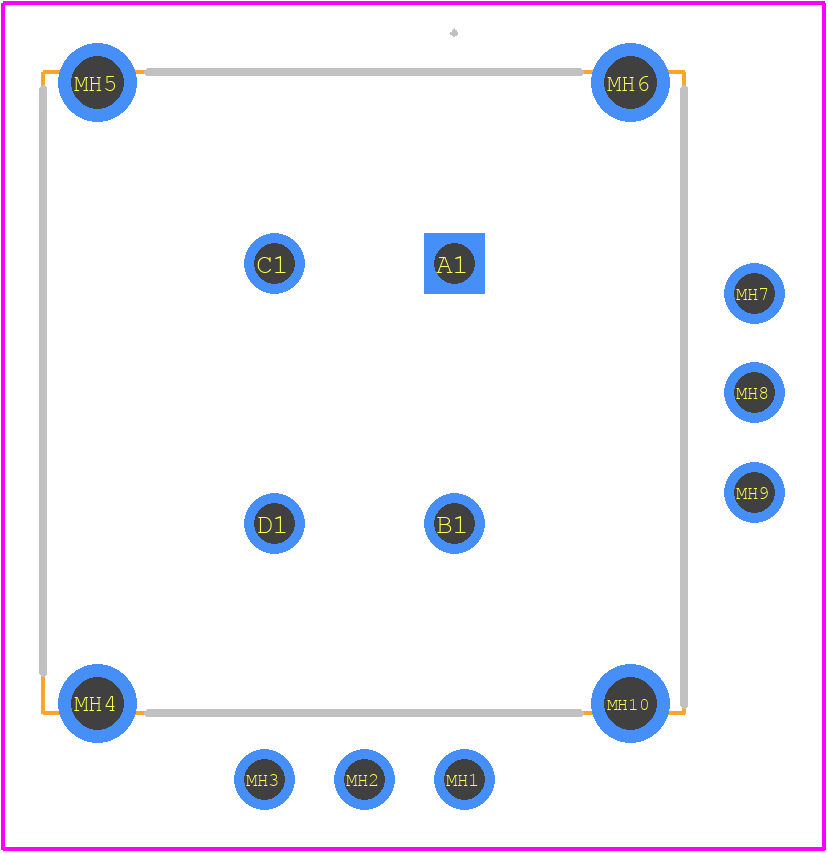

252A103B60NA - CTS PCB footprint - Other - Other - 252A103B60NA-4
click to zoom
3D Models
252A103B60NA - CTS  - 3D model - Other - 252A103B60NA-4
click to zoom

252A103B60NA Details

  • Manufacturer Part Number:

    252A103B60NA

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • Manufacturer:

    CTS Corporation

  • YTEOL:

    0

  • Actuator Orientation:

    VERTICAL

  • Actuator Type:

    JOYSTICK

  • Ganging Number:

    2

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Rated Power Dissipation (P):

    0.0125 W

  • Rated Temperature:

    50 °C

  • Resistance:

    10000 Ω

  • Resistance Law:

    LINEAR

  • Resistor Type:

    POTENTIOMETER

  • Surface Mount:

    NO

  • Terminal Shape:

    WIRE

  • Tolerance:

    20%

252A103B60NA Frequently Asked Questions (FAQs)

  • The recommended storage condition for the 252A103B60NA is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -40°C to 125°C.
  • Handle the component by the body or tabs, avoiding touching the pins or electrical components to prevent damage from electrostatic discharge (ESD). Use an anti-static wrist strap or mat, and ensure the workspace is ESD-safe.
  • The maximum allowable voltage for the 252A103B60NA is 60V, as specified in the datasheet. Exceeding this voltage may cause damage to the component.
  • The 252A103B60NA is rated for operation up to 125°C. However, it's recommended to derate the component's performance and consider thermal management strategies when operating in high-temperature environments.
  • Follow the recommended soldering profile and temperature guidelines in the datasheet. Ensure the soldering iron is set to the recommended temperature (typically 250°C to 260°C), and use a solder with a melting point below 220°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

252A103B60NA Overview

Use the download button to access the 252A103B60NA schematic symbol, PCB footprint, and 3D model.
