2530N - Signetics

2530N Details

• Manufacturer Part Number:

  2530N

• Part Life Cycle Code:

  Obsolete

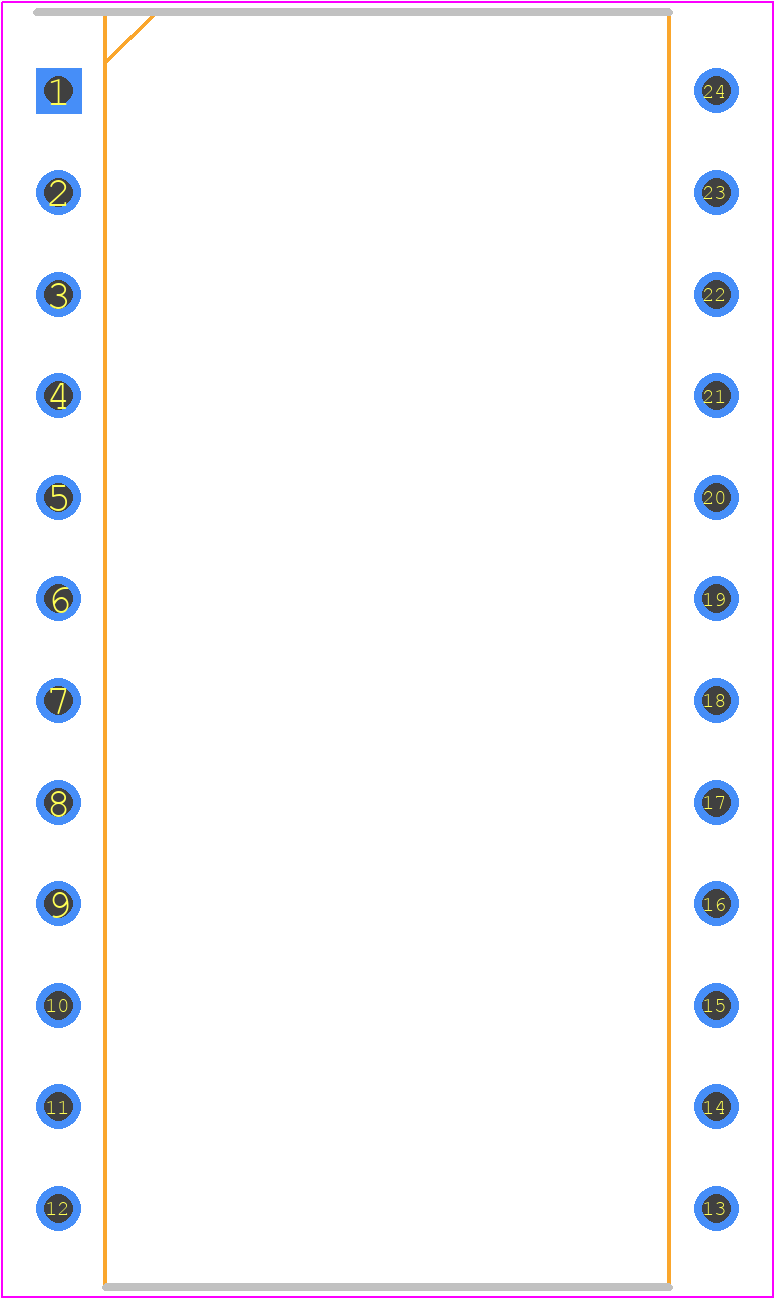

• Package Description:

  DIP-24

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.71

• Manufacturer:

  Signetics

• YTEOL:

  0

• Access Time-Max:

  700 ns

• JESD-30 Code:

  R-PDIP-T24

• Memory Density:

  4096 bit

• Memory IC Type:

  MASK ROM

• Memory Width:

  8

• Number of Functions:

  1

• Number of Terminals:

  24

• Number of Words:

  512 words

• Number of Words Code:

  512

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  70 °C

• Organization:

  512X8

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Parallel/Serial:

  PARALLEL

• Qualification Status:

  Not Qualified

• Supply Voltage-Max (Vsup):

  5.25 V

• Supply Voltage-Min (Vsup):

  4.75 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  MOS

• Temperature Grade:

  COMMERCIAL

• Terminal Form:

  THROUGH-HOLE

• Terminal Position:

  DUAL
