254-454/000-004 - Wago

Description: PCB terminal block; 2.5 mm²; Pin spacing 5/5.08 mm; 4-pole; PUSH WIRE®

Download 254-454/000-004 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
254-454/000-004 - Wago - PCB symbol
click to zoom
PCB Footprints

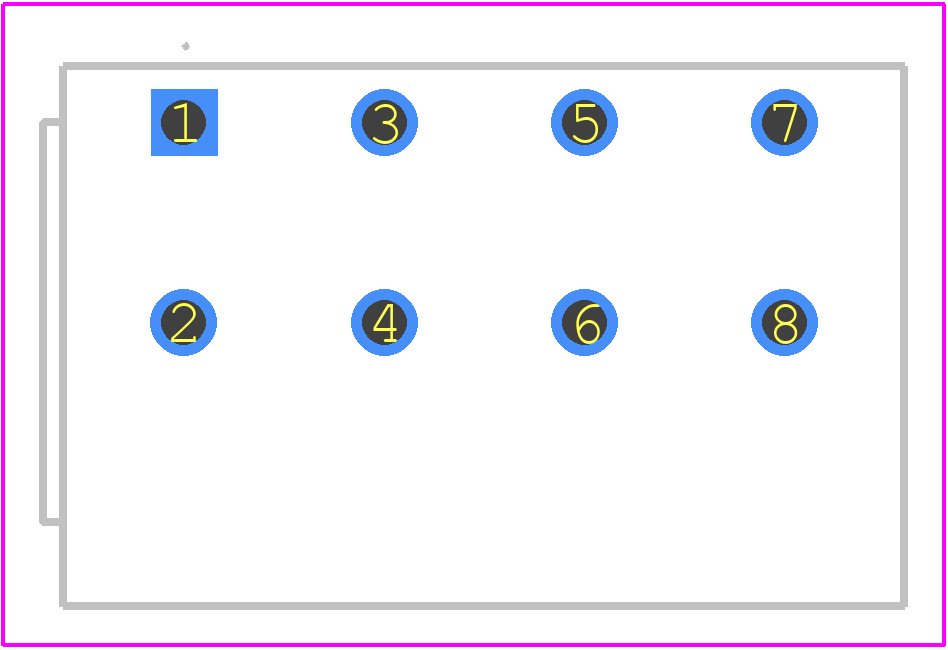

254-454/000-004 - Wago PCB footprint - Other - Other - 254-154-2
click to zoom
3D Models
254-454/000-004 - Wago - 3D model - Other - 254-154-2
click to zoom

254-454/000-004 Details

  • Manufacturer Part Number:

    254-454/000-004

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

254-454/000-004 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.6 Nm to 0.8 Nm, as specified in the WAGO application notes.
  • Yes, the 254-454/000-004 connectors are designed to withstand high-vibration environments, with a vibration resistance of up to 10 g according to IEC 60068-2-6.
  • Yes, the connectors are rated IP67, making them suitable for outdoor use and providing protection against dust and water ingress.
  • The maximum wire size that can be used with these connectors is 2.5 mm² (AWG 14) according to the datasheet.
  • No, the 254-454/000-004 connectors are not certified for use in explosive atmospheres and should not be used in such environments.
