254-454 - Wago

Description: PCB terminal block; 2.5 mm²; Pin spacing 5/5.08 mm; 4-pole; PUSH WIRE®

Download 254-454 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
254-454 - Wago - PCB symbol
click to zoom
PCB Footprints

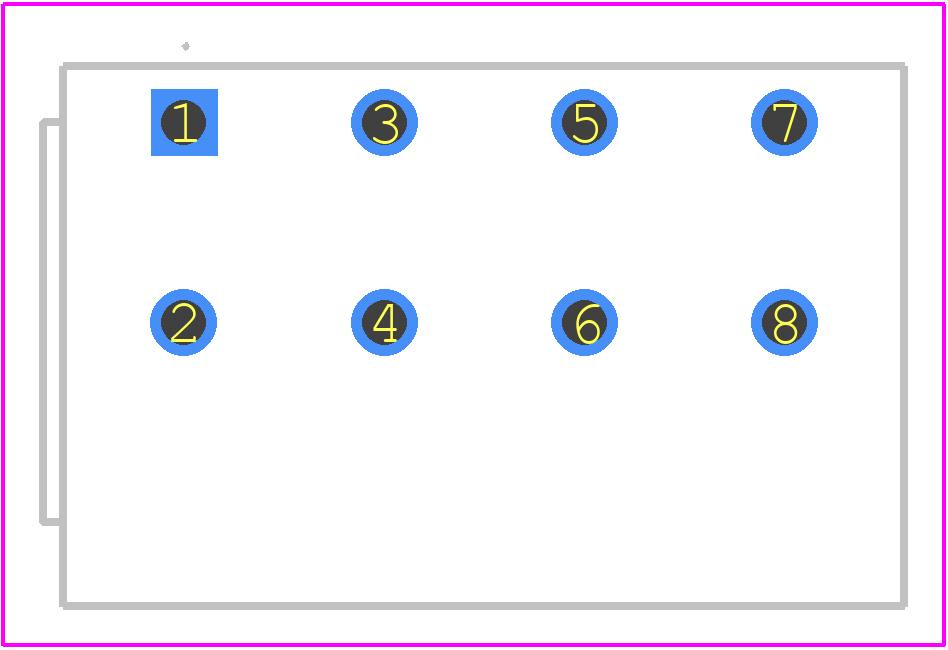

254-454 - Wago PCB footprint - Other - Other - 254-154-2
click to zoom
3D Models
254-454 - Wago - 3D model - Other - 254-154-2
click to zoom

254-454 Details

  • Manufacturer Part Number:

    254-454

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    7.83

  • Additional Feature:

    FRONT ENTRY

  • Fastening Method:

    PUSH-ON

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

254-454 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals is 0.6 Nm to 1.2 Nm (5 in-lbs to 10 in-lbs).
  • Yes, the 254-454 connectors are suitable for outdoor use, but they must be installed in accordance with the relevant environmental and safety standards.
  • Yes, the 254-454 connectors are designed to withstand high-vibration applications, but it's recommended to use additional securing measures such as cable ties or strain relief to ensure reliable connections.
  • The maximum operating temperature for the 254-454 connectors is 85°C (185°F), but this may vary depending on the specific application and environmental conditions.
  • Yes, the 254-454 connectors are UL-certified and meet the requirements of UL 310, UL 486A-486B, and UL 489.
