254416-E footprint, schematic symbol and 3D model by TE Connectivity

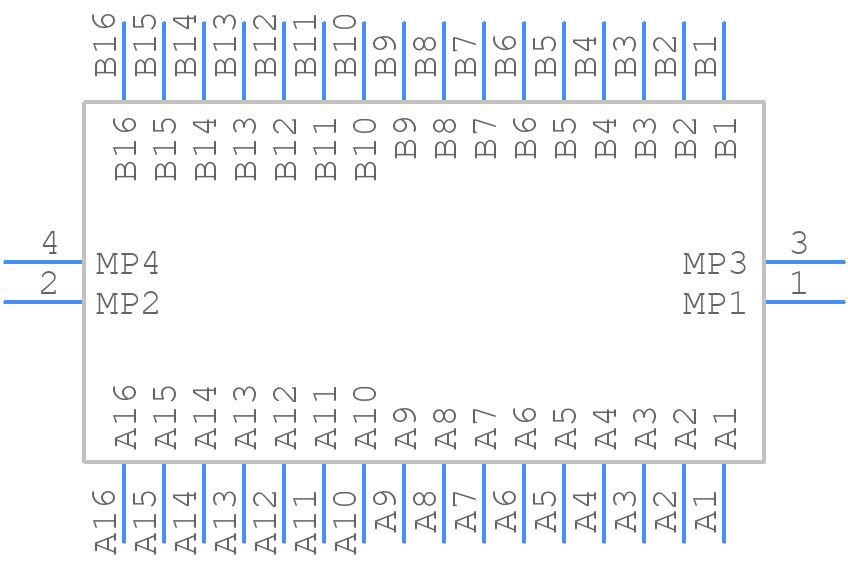

Symbol

click to zoom

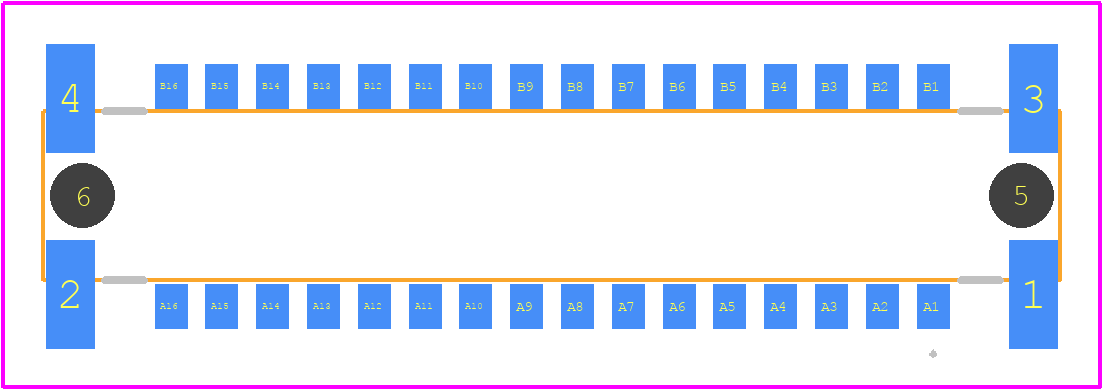

PCB Footprints

254416-E - TE Connectivity PCB footprint - Other - Other - 254416-E-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 254416-E
Part Number 254416-E
Manufacturer TE Connectivity
Pin Count 36
Part Category Connector
Package Category Other
Footprint Name Other - 254416-E-1
Released Date Aug 13, 2024
Last Modified Date Dec 15, 2024 10:37 PM UTC
Pinout / Pin List Click Here (Member Only)

254416-E Details

Manufacturer Part Number:
254416-E
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
15 Weeks, 1 Day
Manufacturer:
TE Connectivity
YTEOL:
9.4
Board Mounting Option:
LOCATING POST
Body Breadth:
0.283 inch
Body Depth:
0.388 inch
Body Length:
1 inch
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT APPLICABLE
Contact Pattern:
RECTANGULAR
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
MIL Conformance:
NO
Mains Connector Rating:
1.7A
Mating Contact Row Spacing:
0.05 inch
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Ports:
1
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Polarization Key:
POLARIZED
Rated Current (Signal):
1.7 A
Reference Standard:
UL
Terminal Pitch:
1.27 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
32
UL Flammability Code:
94V-0

254416-E Frequently Asked Questions (FAQs)

The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure reliable connections and prevent damage to the connector.
Yes, the 254416-E connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz). However, it's crucial to ensure proper mounting and secure the connector to the PCB or panel to prevent damage or disconnection.
The 254416-E connector is rated for operating temperatures between -40°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to consider the specific environmental conditions of your application and consult with TE Connectivity or a qualified engineer if you have concerns.
The 254416-E connector is rated for a minimum of 500 mating cycles. This means it can withstand repeated connections and disconnections without compromising its performance or reliability.
While the datasheet recommends AWG 20-24 wire sizes, it's possible to use other wire sizes with the 254416-E connector. However, you should consult with TE Connectivity or a qualified engineer to ensure the connector's performance and reliability are not compromised.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

254416-E Overview

Use the download button to access the 254416-E schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 25441, or try a keyword search, such as Headers and Edge Type Connectors
