254590-E - TE Connectivity

Description: Board to Board & Mezzanine Connectors 40-PIN, VERTICAL, SMT

Download 254590-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

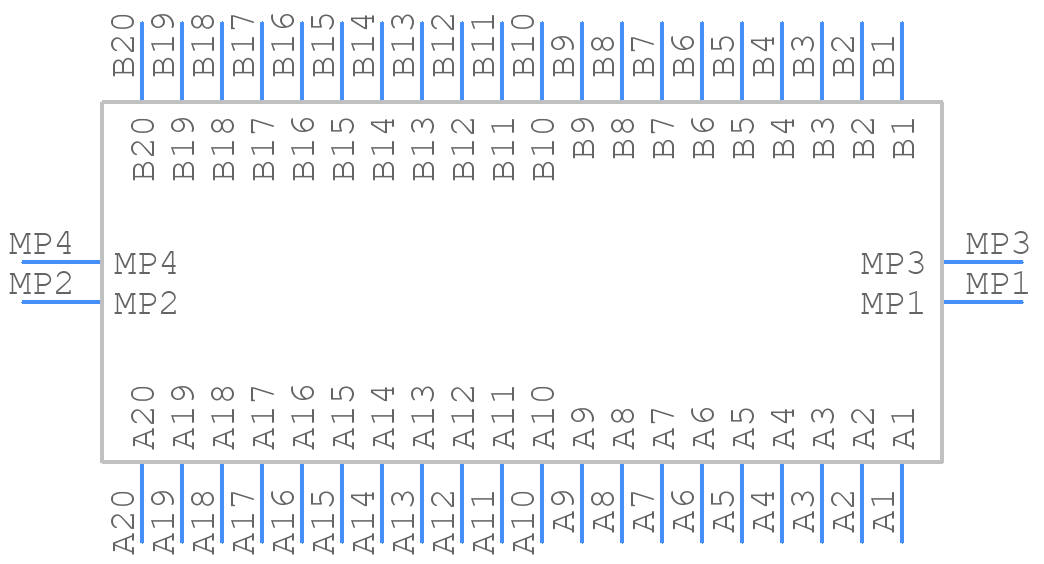

Symbol
254590-E - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
254590-E - TE Connectivity PCB footprint - Other - Other - 254590-E-1
click to zoom
3D Models
254590-E - TE Connectivity - 3D model - Other - 254590-E-1
click to zoom

254590-E Details

  • Manufacturer Part Number:

    254590-E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    15 Weeks, 1 Day

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9.4

  • Board Mounting Option:

    LOCATING POST

  • Body Breadth:

    0.275 inch

  • Body Depth:

    0.266 inch

  • Body Length:

    1.2 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1.7A

  • Mating Contact Row Spacing:

    0.05 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    1.7 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    40

  • UL Flammability Code:

    94V-0

254590-E Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure reliable connections and prevent damage to the connector.
  • Yes, the 254590-E connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • The operating temperature range for the 254590-E connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
  • The 254590-E connector has a IP67 rating, which means it is protected against dust and temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's not recommended for use in applications with exposure to harsh chemicals or prolonged immersion in water.
  • The 254590-E connector has a mating cycle life of 500 cycles. This means it can withstand 500 connect and disconnect cycles before its performance may start to degrade.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

254590-E Overview

Use the download button to access the 254590-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 25459, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
