Part Image

255-412 - Wago

Description: PCB terminal block; push-button; 2.5 mm²; Pin spacing 5/5.08 mm; 12-pole; CAGE CLAMP®; commoning option

Download 255-412 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

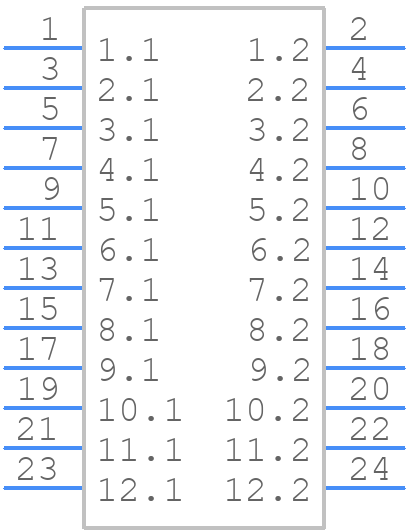

255-412 - Wago - PCB symbol
click to zoom
PCB Footprints

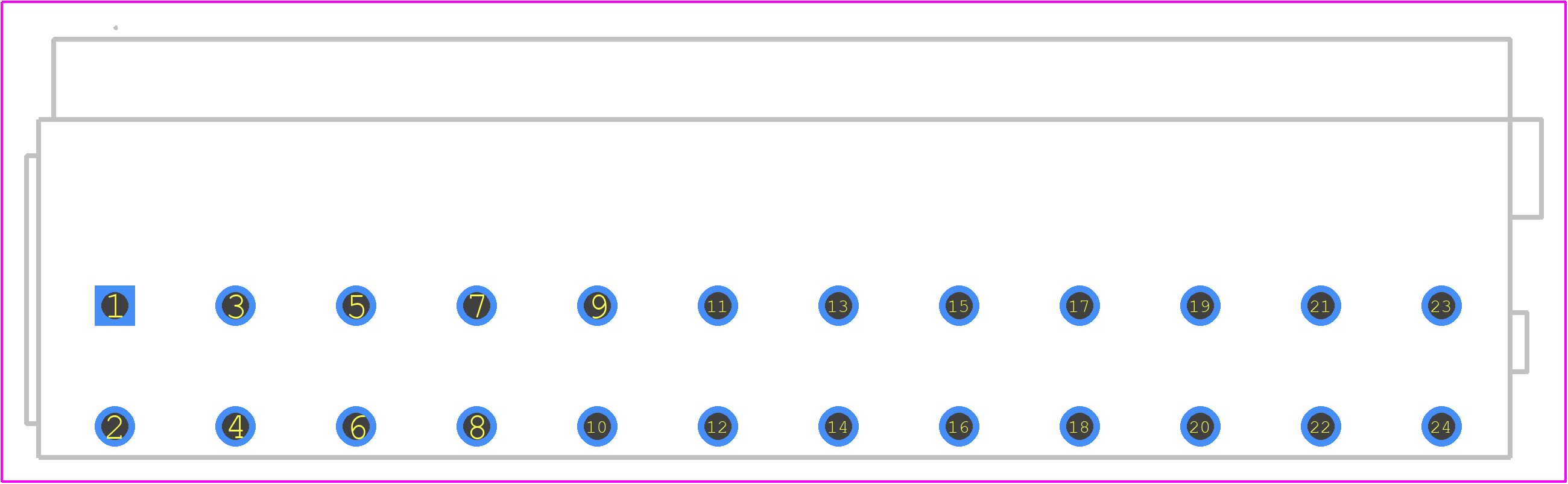

255-412 - Wago PCB footprint - Other - Other - 255-412-1
click to zoom
3D Models
255-412 - Wago - 3D model - Other - 255-412-1
click to zoom

255-412 Details

  • Manufacturer Part Number:

    255-412

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    6.87

  • Additional Feature:

    CAGE CLAMP

  • Fastening Method:

    SOLDER

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    12

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

255-412 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw connections is 0.6 Nm to 1.2 Nm, depending on the specific application and wire size.
  • Yes, the 255-412 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Cat. 1, Class B.
  • Yes, the 255-412 connector is rated IP67, making it suitable for outdoor use and providing protection against dust and water ingress.
  • The 255-412 connector has an operating temperature range of -40°C to +125°C, making it suitable for a wide range of applications.
  • Yes, the 255-412 connector is suitable for use with aluminum wires, but it's recommended to follow the manufacturer's guidelines for wire preparation and termination.

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

255-412 Overview

Use the download button to access the 255-412 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 255-4, or try a keyword search, such as Terminals and Terminal Blocks
