256-405/334-000 - Wago

Description: PCB terminal block; push-button; 2.5 mm²; Pin spacing 5/5.08 mm; 5-pole; CAGE CLAMP®; commoning option

Download 256-405/334-000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
256-405/334-000 - Wago - PCB symbol
click to zoom
PCB Footprints

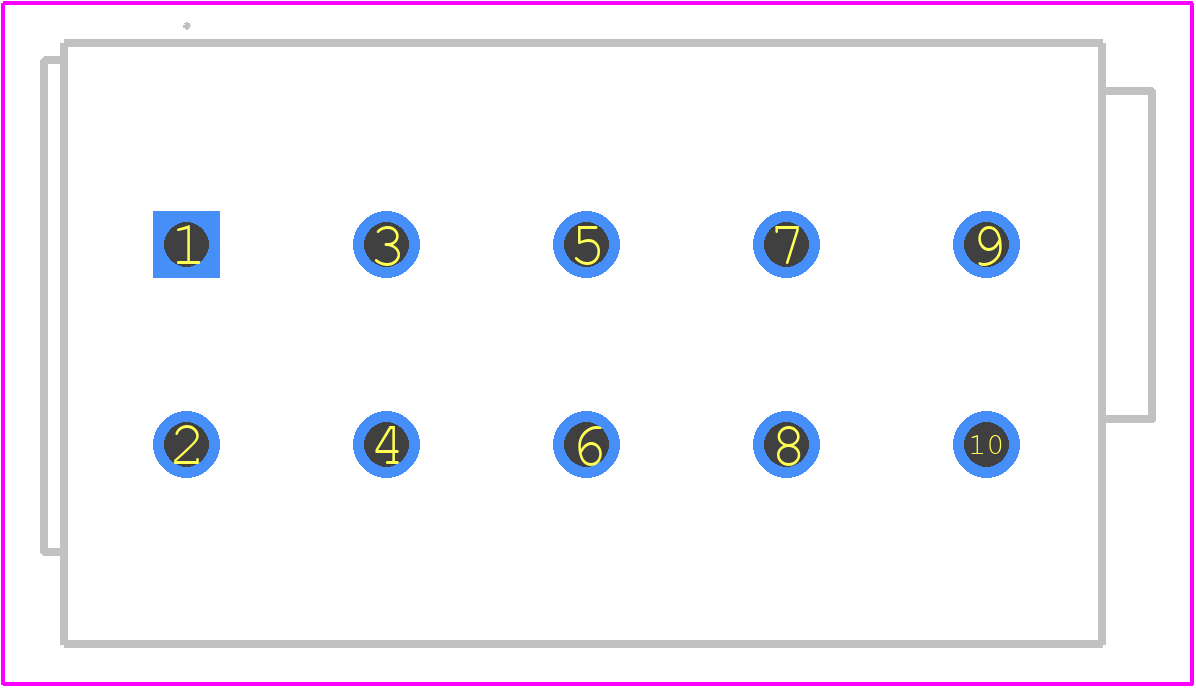

256-405/334-000 - Wago PCB footprint - Other - Other - 256-405/334-000
click to zoom
3D Models
256-405/334-000 - Wago - 3D model - Other - 256-405/334-000
click to zoom

256-405/334-000 Details

  • Manufacturer Part Number:

    256-405/334-000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE66

  • Fastening Method:

    PUSH BUTTON

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    5

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CCA;CSA;DNV;EN;IEC;GL;UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG
