256-405 - Wago

Description: PCB terminal block; push-button; 2.5 mm²; Pin spacing 5/5.08 mm; 5-pole; CAGE CLAMP®; commoning option

Download 256-405 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
256-405 - Wago - PCB symbol
click to zoom
PCB Footprints

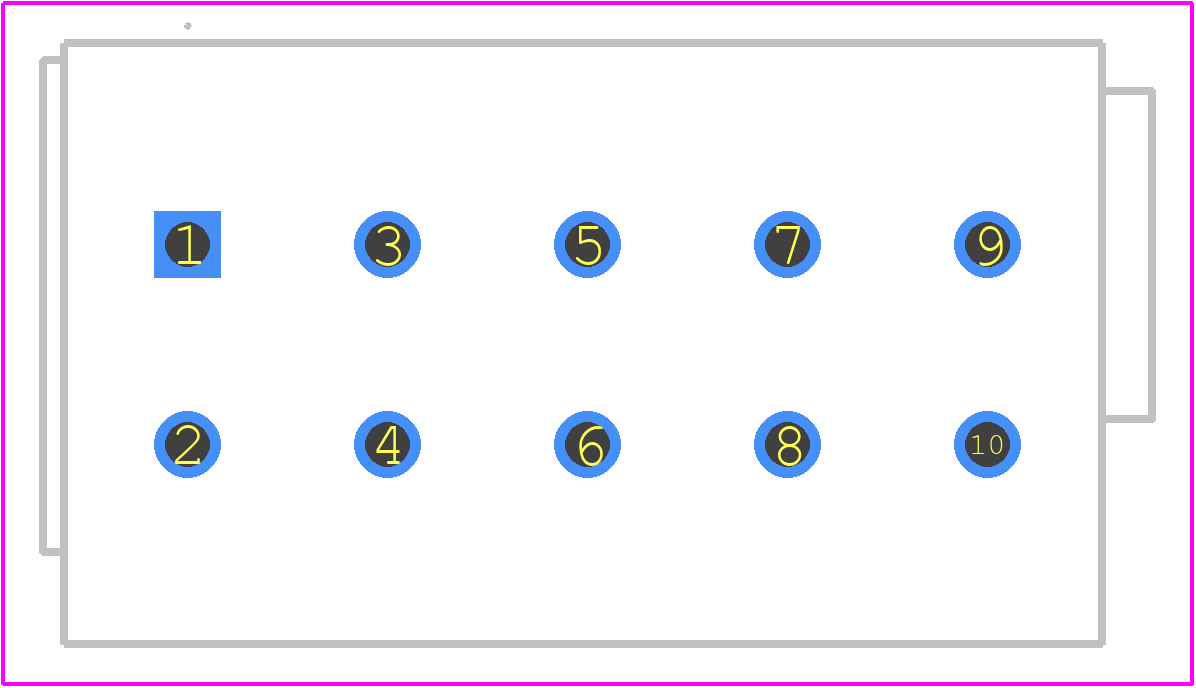

256-405 - Wago PCB footprint - Other - Other - 256-405-1
click to zoom
3D Models
256-405 - Wago - 3D model - Other - 256-405-1
click to zoom

256-405 Details

  • Manufacturer Part Number:

    256-405

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    6.81

  • Additional Feature:

    CAGE CLAMP

  • Fastening Method:

    SOLDER

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    5

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

256-405 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 256-405 connector is 0.6 Nm to 1.2 Nm (5-10 lbf-in).
  • Yes, the 256-405 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Category 1, Class 1.
  • Yes, the 256-405 connector is rated IP67, making it suitable for outdoor use and able to withstand exposure to water and dust.
  • Yes, the 256-405 connector is designed to work with both solid and stranded wire, but it's recommended to use a wire with a minimum strand count of 30.
  • The 256-405 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F).
