256-407 - Wago

Description: PCB terminal block; push-button; 2.5 mm²; Pin spacing 5/5.08 mm; 7-pole; CAGE CLAMP®; commoning option

Download 256-407 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

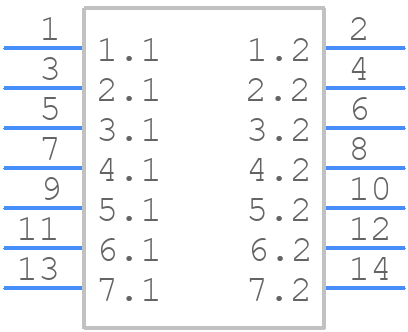

256-407 - Wago - PCB symbol
click to zoom
PCB Footprints

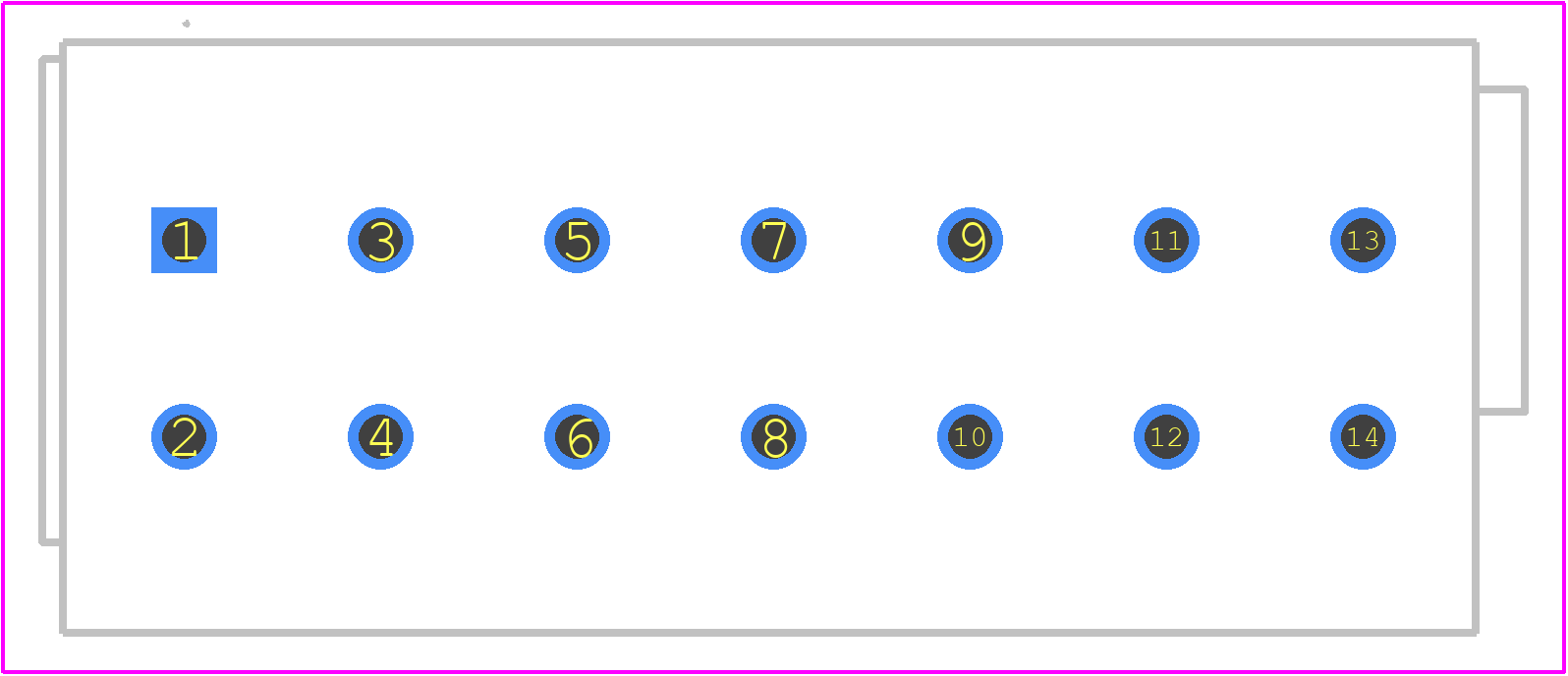

256-407 - Wago PCB footprint - Other - Other - 256-407-1
click to zoom
3D Models
256-407 - Wago - 3D model - Other - 256-407-1
click to zoom

256-407 Details

  • Manufacturer Part Number:

    256-407

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    CAGE CLAMP

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    7

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

256-407 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 256-407 connector is 0.6 Nm to 1.2 Nm (5 in-lbs to 10 in-lbs).
  • Yes, the 256-407 connector is suitable for outdoor use, as it has a IP67 rating, which means it is protected against dust and water ingress.
  • Yes, the 256-407 connector is designed to withstand high-vibration applications, making it suitable for use in industrial and transportation applications.
  • The maximum operating temperature of the 256-407 connector is 125°C (257°F).
  • Yes, the 256-407 connector is compatible with other WAGO connectors, including the 256-400 and 256-500 series.
