256-408 - Wago

Description: PCB terminal block; push-button; 2.5 mm²; Pin spacing 5/5.08 mm; 8-pole; CAGE CLAMP®; commoning option

Download 256-408 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
256-408 - Wago - PCB symbol
click to zoom
PCB Footprints

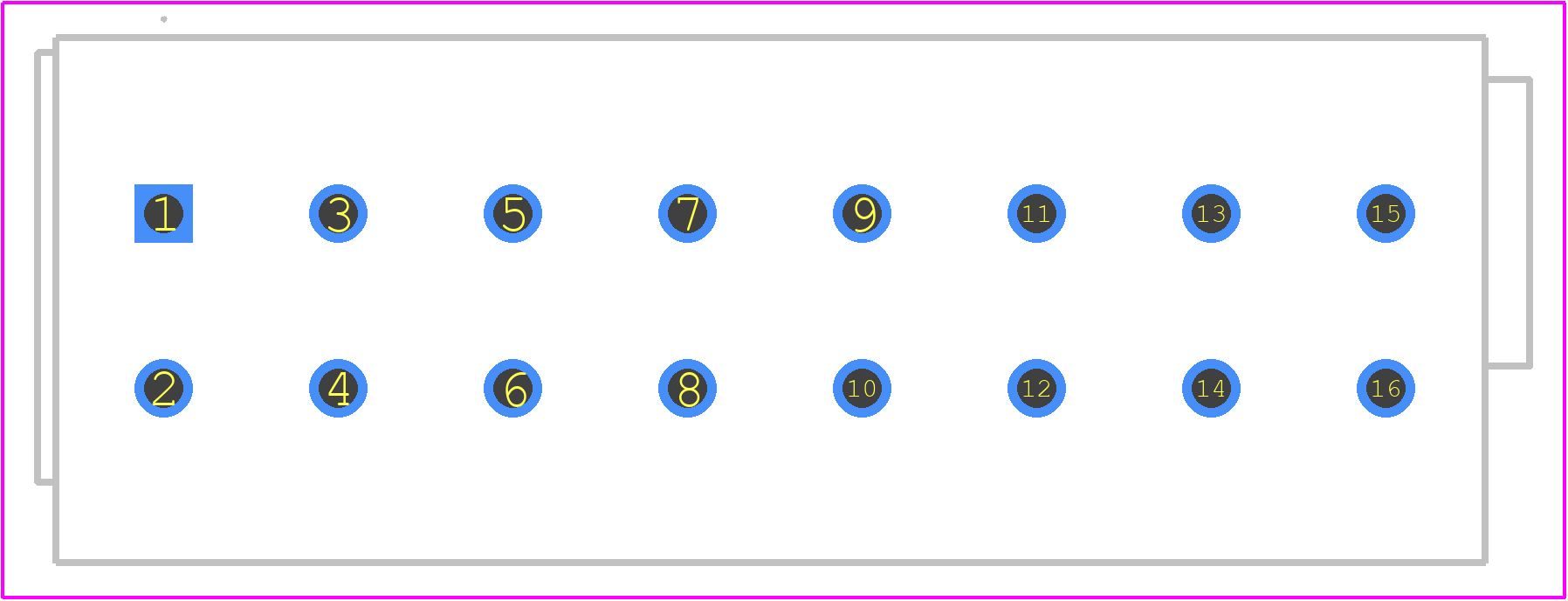

256-408 - Wago PCB footprint - Other - Other - 256-408-1
click to zoom
3D Models
256-408 - Wago - 3D model - Other - 256-408-1
click to zoom

256-408 Details

  • Manufacturer Part Number:

    256-408

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    7

  • Additional Feature:

    CAGE CLAMP

  • Fastening Method:

    SOLDER

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

256-408 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 256-408 connector is 0.6 Nm to 1.2 Nm (5 in-lbs to 10 in-lbs).
  • Yes, the 256-408 connector is suitable for outdoor use, as it has a IP67 rating, which means it is protected against dust and water ingress.
  • Yes, the 256-408 connector is designed to withstand high-vibration applications, with a vibration resistance of up to 10g.
  • The operating temperature range of the 256-408 connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 256-408 connector meets the requirements of UL 1977 and CSA 22.2 No. 182.1 standards.
