256-410 - Wago

Description: PCB terminal block; push-button; 2.5 mm²; Pin spacing 5/5.08 mm; 10-pole; CAGE CLAMP®; commoning option

Download 256-410 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

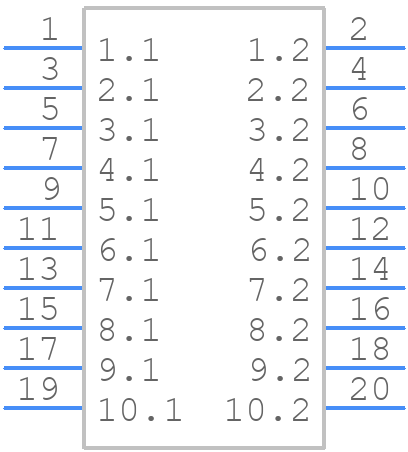

256-410 - Wago - PCB symbol
click to zoom
PCB Footprints

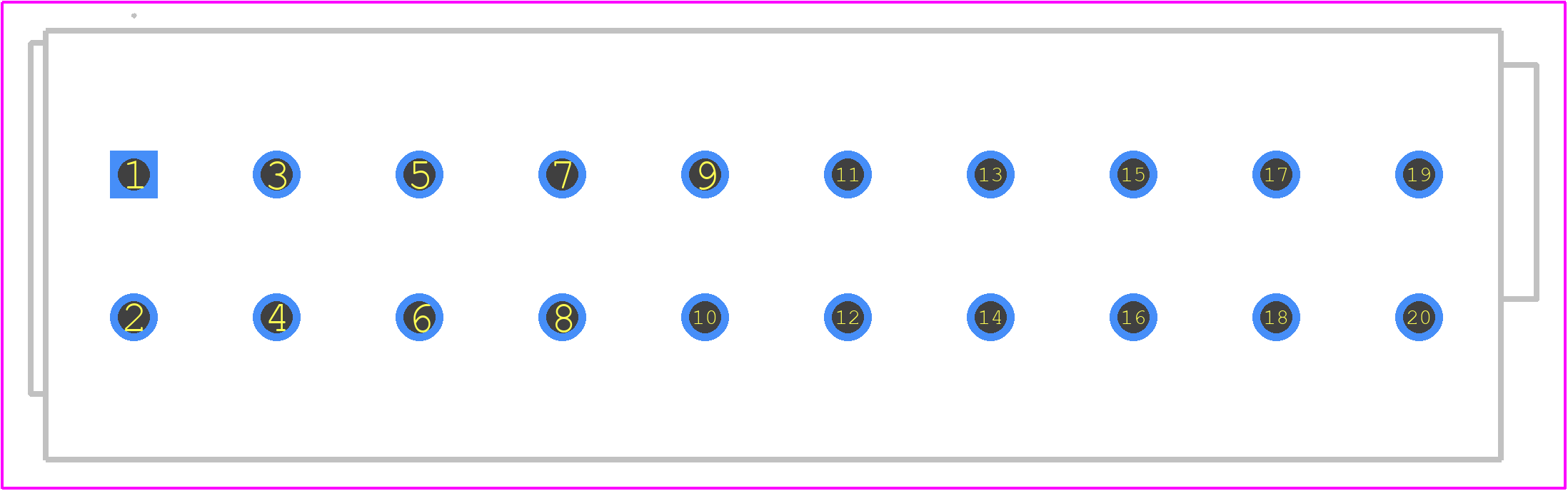

256-410 - Wago PCB footprint - Other - Other - 256-410-1
click to zoom
3D Models
256-410 - Wago - 3D model - Other - 256-410-1
click to zoom

256-410 Details

  • Manufacturer Part Number:

    256-410

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    6.75

  • Additional Feature:

    FRONT ENTRY, CAGE CLAMP

  • Fastening Method:

    SOLDER

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    10

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

256-410 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material. It's essential to consult the WAGO application notes for specific guidance.
  • Yes, the 256-410 connector is designed to withstand vibrations up to 10 g (according to IEC 60068-2-6) and is suitable for use in industrial and transportation applications.
  • Yes, the connector is designed for automated assembly and can be used with standard pick-and-place machines. However, it's recommended to consult with WAGO's application engineers to ensure compatibility with specific assembly equipment.
  • The operating temperature range for the 256-410 connector is -40°C to +125°C, making it suitable for use in a wide range of industrial and automotive applications.
  • The connector has a IP20 rating, which means it's protected against solid objects larger than 12 mm, but not against water or moisture. For use in humid or wet environments, additional protection measures such as conformal coating or sealing may be necessary.

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

256-410 Overview

Use the download button to access the 256-410 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 256-4, or try a keyword search, such as Terminals and Terminal Blocks
