Part Image

256-504 - Wago

Description: PCB terminal block; push-button; 2.5 mm²; Pin spacing 7.5/7.62 mm; 4-pole; CAGE CLAMP®; commoning option

Download 256-504 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
256-504 - Wago - PCB symbol
click to zoom
PCB Footprints

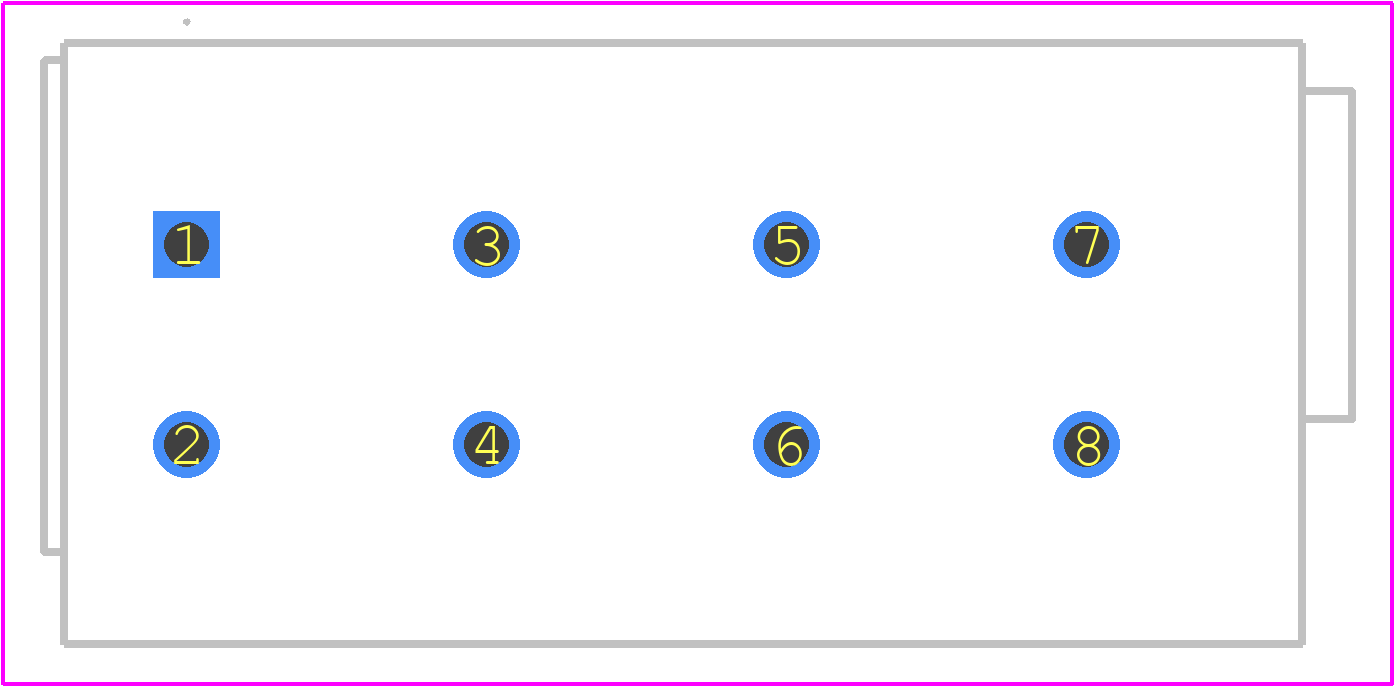

256-504 - Wago PCB footprint - Other - Other - 256-504-1
click to zoom
3D Models
256-504 - Wago - 3D model - Other - 256-504-1
click to zoom

256-504 Details

  • Manufacturer Part Number:

    256-504

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    6.77

  • Additional Feature:

    FRONT ENTRY, CAGE CLAMP

  • Fastening Method:

    SOLDER

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

256-504 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw connections is 0.6 Nm to 1.2 Nm, depending on the specific application and wire size.
  • Yes, the 256-504 connector is suitable for use with stranded wires, but it's recommended to use wires with a minimum strand count of 30 to ensure reliable connections.
  • The operating temperature range for the 256-504 connector is -40°C to 125°C, making it suitable for use in a wide range of industrial and commercial applications.
  • Yes, the 256-504 connector is UL certified, meeting the requirements of UL 310, UL 486A-486B, and UL 489.
  • The 256-504 connector is not intended for use in hazardous locations, such as explosive atmospheres. However, WAGO offers other connectors that are certified for use in hazardous locations, such as the 256-504-EX.

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

256-504 Overview

Use the download button to access the 256-504 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 256-5, or try a keyword search, such as Terminals and Terminal Blocks
