2563550000 - Weidmüller

Description: PCB plug-in connector (data), THT solder connection, 2.00 mm, Number of poles: 9, 90°, 2.3 mm, Gold over nickel, blue, Tray (manual assembly)

Download 2563550000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2563550000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

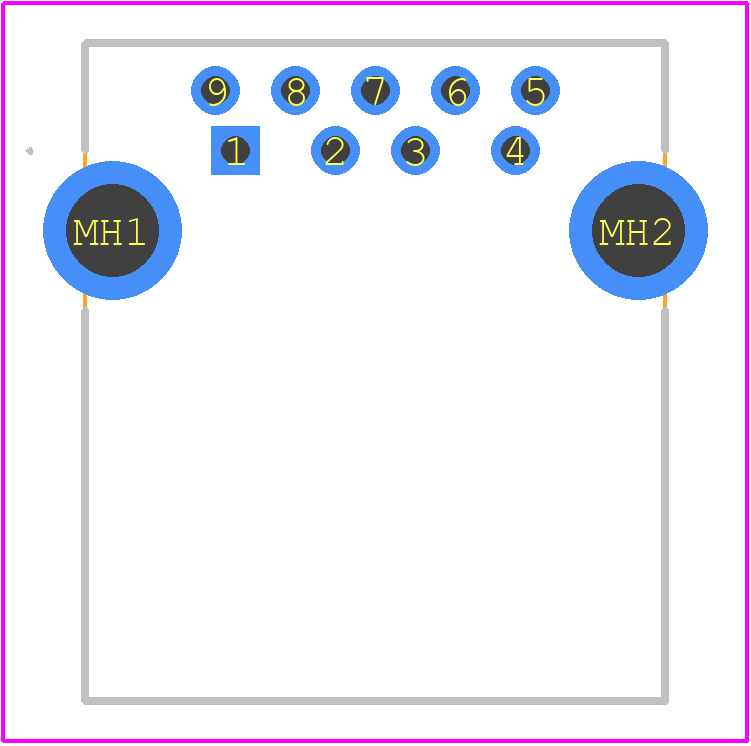

2563550000 - Weidmüller PCB footprint - Other - Other - 2563550000-5
click to zoom
3D Models
2563550000 - Weidmüller - 3D model - Other - 2563550000-5
click to zoom

2563550000 Details

  • Manufacturer Part Number:

    2563550000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    0

  • Connector Type:

    USB CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e4

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2563550000 Overview

Use the download button to access the 2563550000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 25635, or try a keyword search, such as Telecom and Datacom Connectors
