25AA160DT-I/MNY - Microchip

Description: • Max. Clock 10 MHz • Low-Power CMOS Technology: - Max. write current: 5 mA at 5.5V - Read current: 5 mA at 5.5V, 10 MHz - Standby current: 5 uA at 5.5V • 2048 x 8-bit Organization • 16-Byte Page (‘C’ version devices) • 32-Byte Page (‘D’ version devices) • Self-Timed Erase and Write Cycles (5 ms max.) • Block Write Protection: - Protect none, 1/4, 1/2 or all of array • Built-In Write Protection: - Power-on/off data protection circuitry - Write enable latch - Write-protect pin • Sequential Rea

Download 25AA160DT-I/MNY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

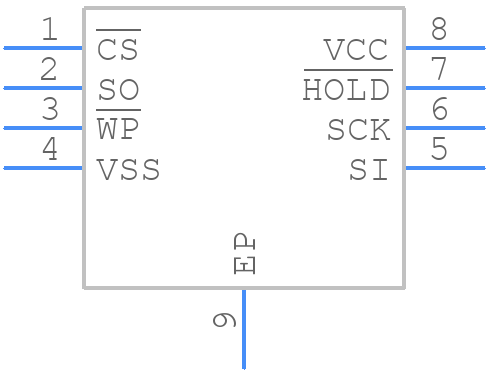

25AA160DT-I/MNY - Microchip - PCB symbol
click to zoom
PCB Footprints
25AA160DT-I/MNY - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-LEAD PLASTIC DUAL FLAT, NO LEAD PACKAGE (MN) - 2X3X0.75mm BODY [TDFN]
click to zoom
3D Models
25AA160DT-I/MNY - Microchip - 3D model - Small Outline No-lead - 8-LEAD PLASTIC DUAL FLAT, NO LEAD PACKAGE (MN) - 2X3X0.75mm BODY [TDFN]
click to zoom

25AA160DT-I/MNY Details

  • Manufacturer Part Number:

    25AA160DT-I/MNY

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    TDFN-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Additional Feature:

    OPERATES WITH 1.8VMIN @ 3MHZ

  • Clock Frequency-Max (fCLK):

    10 MHz

  • Data Retention Time-Min:

    200

  • Endurance:

    1000000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Memory Density:

    16384 bit

  • Memory IC Type:

    EEPROM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    8

  • Number of Words:

    2048 words

  • Number of Words Code:

    2000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    2KX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWSON

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Programming Voltage:

    2.5 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.000001 A

  • Supply Current-Max:

    0.005 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    2 mm

  • Write Cycle Time-Max (tWC):

    5 ms

  • Write Protection:

    HARDWARE/SOFTWARE

25AA160DT-I/MNY Frequently Asked Questions (FAQs)

  • The 25AA160DT-I/MNY has a minimum of 1 million write cycles, but the actual number of write cycles may vary depending on the usage and operating conditions.
  • The 25AA160DT-I/MNY uses a page write buffer to handle page writes. The device can write up to 16 bytes of data in a single page write operation.
  • The WP (Write Protect) pin is used to prevent accidental writes to the device. When the WP pin is tied low, the device is in a write-protected state, and any attempt to write to the device will be ignored.
  • Yes, the 25AA160DT-I/MNY can be used in a multi-master SPI bus system. The device has a built-in arbitration mechanism that allows it to operate in a multi-master environment.
  • The maximum clock frequency for the 25AA160DT-I/MNY is 20 MHz.
