25TQC15MYFD - Panasonic

Description: Panasonic Tantalum Capacitor 15µF 25V dc Polymer Solid ±20% Tolerance POSCAP TQC Series

Download 25TQC15MYFD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
25TQC15MYFD - Panasonic - PCB symbol
click to zoom

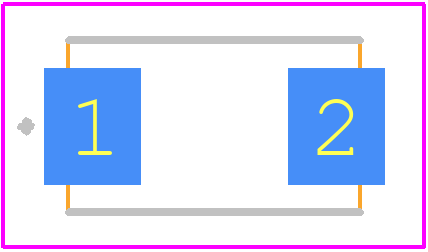

PCB Footprints
25TQC15MYFD - Panasonic PCB footprint - Other - Other - D2
click to zoom
3D Models
25TQC15MYFD - Panasonic - 3D model - Other - D2
click to zoom

25TQC15MYFD Details

  • Manufacturer Part Number:

    25TQC15MYFD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Indonesia, Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    3

  • Additional Feature:

    ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

  • Capacitance:

    15 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (DRY/SOLID)

  • ESR:

    90 mΩ

  • Height:

    1.9 mm

  • Leakage Current:

    0.038 mA

  • Length:

    7.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    25 V

  • Ripple Current:

    1000 mA

  • Size Code:

    2917

  • Surface Mount:

    YES

  • Tan Delta:

    0.1

  • Terminal Shape:

    J BEND

  • Width:

    4.3 mm

25TQC15MYFD Frequently Asked Questions (FAQs)

  • Panasonic provides a recommended PCB layout and land pattern in their application notes. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
  • Proper heat sinking, airflow, and thermal management are crucial. Ensure good airflow around the relay, and consider using a heat sink or thermal interface material if necessary.
  • A suitable drive circuit should be used to ensure the relay coil is properly driven. A transistor or FET switch with a suitable base resistor and freewheeling diode is recommended.
  • Use a suitable inrush current limiter, such as a negative temperature coefficient (NTC) thermistor or a soft-start circuit, to limit the inrush current and prevent damage to the relay.
  • Ensure the relay is properly secured to the PCB, and consider using a relay socket or a stress-relieved PCB design to minimize the effects of vibration and shock.
