25TQC22MYFD - Panasonic

Description: Panasonic 22μF 25V dc Tantalum Capacitor Polymer Solid ±20% Tolerance POSCAP TQC Series

Download 25TQC22MYFD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
25TQC22MYFD - Panasonic - PCB symbol
click to zoom

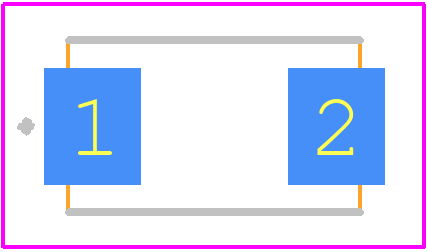

PCB Footprints
25TQC22MYFD - Panasonic PCB footprint - Other - Other - D2
click to zoom
3D Models
25TQC22MYFD - Panasonic - 3D model - Other - D2
click to zoom

25TQC22MYFD Details

  • Manufacturer Part Number:

    25TQC22MYFD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Indonesia, Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    3

  • Additional Feature:

    ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

  • Capacitance:

    22 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (DRY/SOLID)

  • ESR:

    60 mΩ

  • Height:

    1.9 mm

  • Leakage Current:

    0.055 mA

  • Length:

    7.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    25 V

  • Ripple Current:

    1400 mA

  • Size Code:

    2917

  • Surface Mount:

    YES

  • Tan Delta:

    0.1

  • Terminal Shape:

    J BEND

  • Width:

    4.3 mm

25TQC22MYFD Frequently Asked Questions (FAQs)

  • Panasonic recommends a soldering temperature profile with a peak temperature of 260°C for 10-30 seconds, with a ramp-up rate of 2-3°C/s and a ramp-down rate of 4-6°C/s.
  • The 25TQC22MYFD is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and equivalent series inductance (ESL). However, it's essential to consider the capacitor's self-resonant frequency and impedance characteristics in the specific application.
  • The derating curve for the 25TQC22MYFD is typically provided by Panasonic upon request. The curve shows the recommended voltage derating as a function of temperature to ensure the capacitor's reliability and prevent premature failure.
  • Yes, the 25TQC22MYFD can be used in automotive applications. Panasonic provides automotive-grade versions of the capacitor, which meet the requirements of AEC-Q200 and are PPAP (Production Part Approval Process) certified.
  • The 25TQC22MYFD has a moisture sensitivity level (MSL) of 3, which means it can be sensitive to moisture. To prevent damage, it's essential to store the capacitors in a dry environment, handle them with care, and follow the recommended baking and soldering procedures.
