25WD56 - NTE ELECTRONICS

Description: Res Wirewound 0.56 Ohm 5% 25W ±300ppm/°C Molded AXL

Download 25WD56 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 25WD56 model

Email notifications will be applied after download.

Send part feedback

Symbol

25WD56 - NTE ELECTRONICS - PCB symbol

PCB Footprints

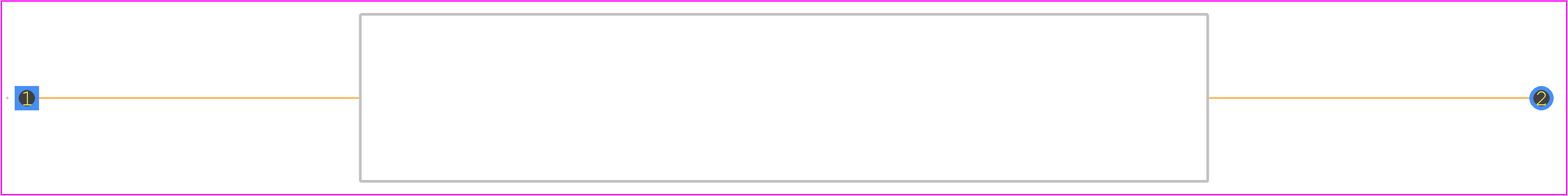

25WD56 - NTE ELECTRONICS PCB footprint - Other - Other - 25WD56-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for 25WD56
Part Number 25WD56
Manufacturer NTE ELECTRONICS
Pin Count 2
Part Category Resistor
Package Category Other
Footprint Name Other - 25WD56-2
Released Date Mar 6, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

25WD56 Details

Manufacturer Part Number:
25WD56
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Reach Compliance Code:
Unknown
ECCN Code:
EAR99
Manufacturer:
NTE Electronics Inc
YTEOL:
0
Number of Terminals:
2
Resistor Type:
FIXED RESISTOR
Technology:
WIRE WOUND
