26-60-2061 - Molex

Description: Headers & Wire Housings KK 156 Hdr Assy Tin Hdr Assy Tin 06 Ckt

Download 26-60-2061 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
26-60-2061 - Molex - PCB symbol
click to zoom
PCB Footprints

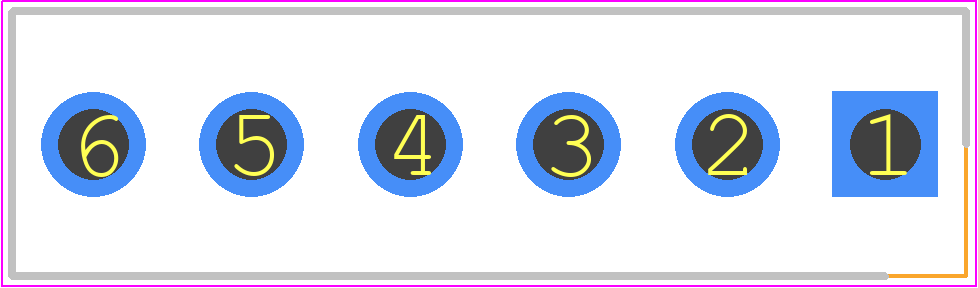

26-60-2061 - Molex PCB footprint - Header, Vertical - Header, Vertical - 26-60-2061
click to zoom
3D Models
26-60-2061 - Molex - 3D model - Header, Vertical - 26-60-2061
click to zoom

26-60-2061 Details

  • Manufacturer Part Number:

    26-60-2061

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    6.6

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    3.96 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-0

26-60-2061 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs).
  • Yes, the contacts are gold-plated to ensure reliable connections and prevent corrosion.
  • The operating temperature range for the Molex 26-60-2061 connector is -40°C to 105°C (-40°F to 221°F).
  • Yes, the Molex 26-60-2061 connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial control systems, automotive, and aerospace.
  • Yes, the Molex 26-60-2061 connector is suitable for both signal and power applications, with a current rating of up to 13A per contact.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

26-60-2061 Overview

Use the download button to access the 26-60-2061 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 26-60, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
