- Part Number 26-60-7050
- Manufacturer Molex
- Pin Count 5
- Part Category Connector
- Package Category Other
- Footprint Name Other - 26-60-7050-2
- Released Date Sep 18, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
26-60-7050 Details
-
Manufacturer Part Number:
26-60-7050
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Reach Compliance Code:
Compliant
-
Country Of Origin:
India, Mexico, Puerto Rico, USA
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
17 Weeks
-
Manufacturer:
Molex
-
YTEOL:
8
26-60-7050 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
-
Yes, the 26-60-7050 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
-
The 26-60-7050 connector has a plastic housing and is not designed for outdoor or harsh environment applications. It's recommended to use connectors with a more robust design and materials, such as those with IP67 or higher ratings, for outdoor or harsh environment applications.
-
While the datasheet specifies AWG 20-24 wire sizes, it's possible to use this connector with other wire sizes. However, it's essential to ensure the wire size is compatible with the connector's terminal design and that the wire can be securely fastened to prevent damage or disconnection.
-
Yes, it's essential to follow proper PCB layout guidelines for this connector, including ensuring sufficient clearance around the connector, using a suitable PCB material, and following the recommended footprint and pad layout.
Trust Checks
Community Provided
System Verified
Community Approved
26-60-7050 Overview

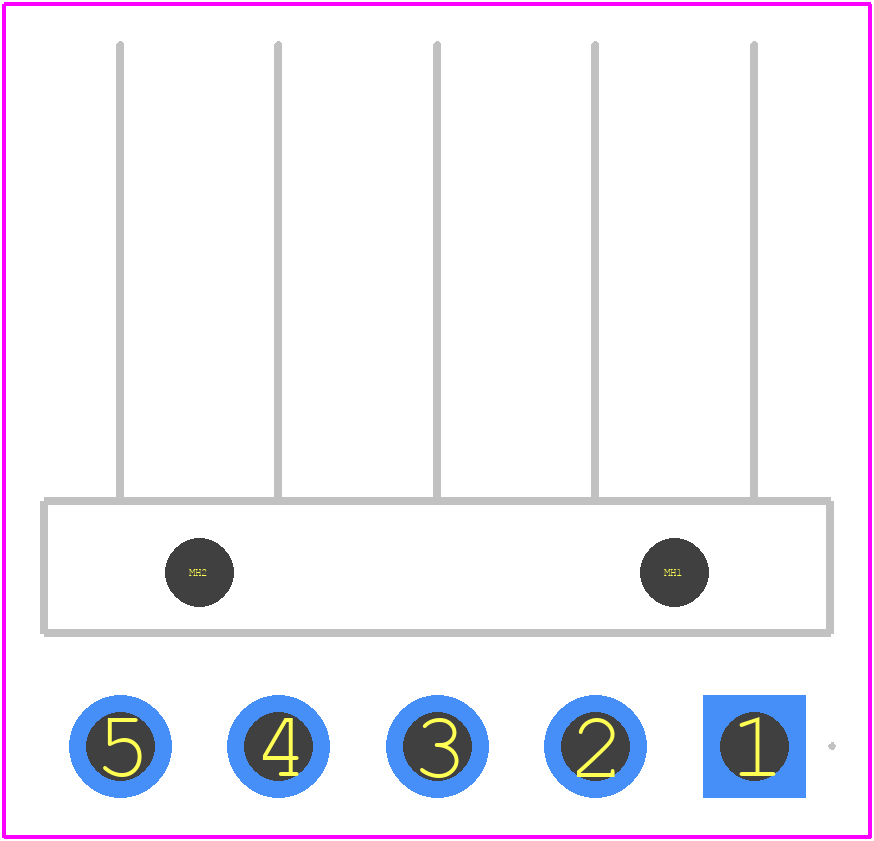

Use the download button to access the 26-60-7050 schematic symbol, PCB footprint, and 3D model.
