- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 26-61-5100
- Part Number 26-61-5100
- Manufacturer Molex
- Pin Count 10
- Part Category Connector
- Package Category Other
- Footprint Name Other - 26-61-5100
- Released Date Mar 6, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
26-61-5100 Details
-
Manufacturer Part Number:
26-61-5100
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Reach Compliance Code:
Compliant
-
Country Of Origin:
India, Mexico, Puerto Rico
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Factory Lead Time:
17 Weeks
-
Manufacturer:
Molex
-
YTEOL:
6.6
26-61-5100 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
-
Yes, the 26-61-5100 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
-
The 26-61-5100 connector has a rating of IP20, which means it provides some protection against solid objects and fingers, but it's not designed for outdoor or harsh environmental use. If you need a connector for outdoor use, consider using a connector with a higher IP rating or additional environmental protection.
-
While the datasheet specifies AWG 20-24 wire sizes, it's possible to use the 26-61-5100 connector with other wire sizes. However, you should verify the wire size and insulation diameter to ensure proper fit and connection reliability. Consult with Molex or a qualified engineer for guidance on using alternative wire sizes.
-
The 26-61-5100 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). Exceeding this temperature range may affect the connector's performance, reliability, or lifespan.
Trust Checks
Expert Contribution
System Verified
Community Approved
26-61-5100 Overview

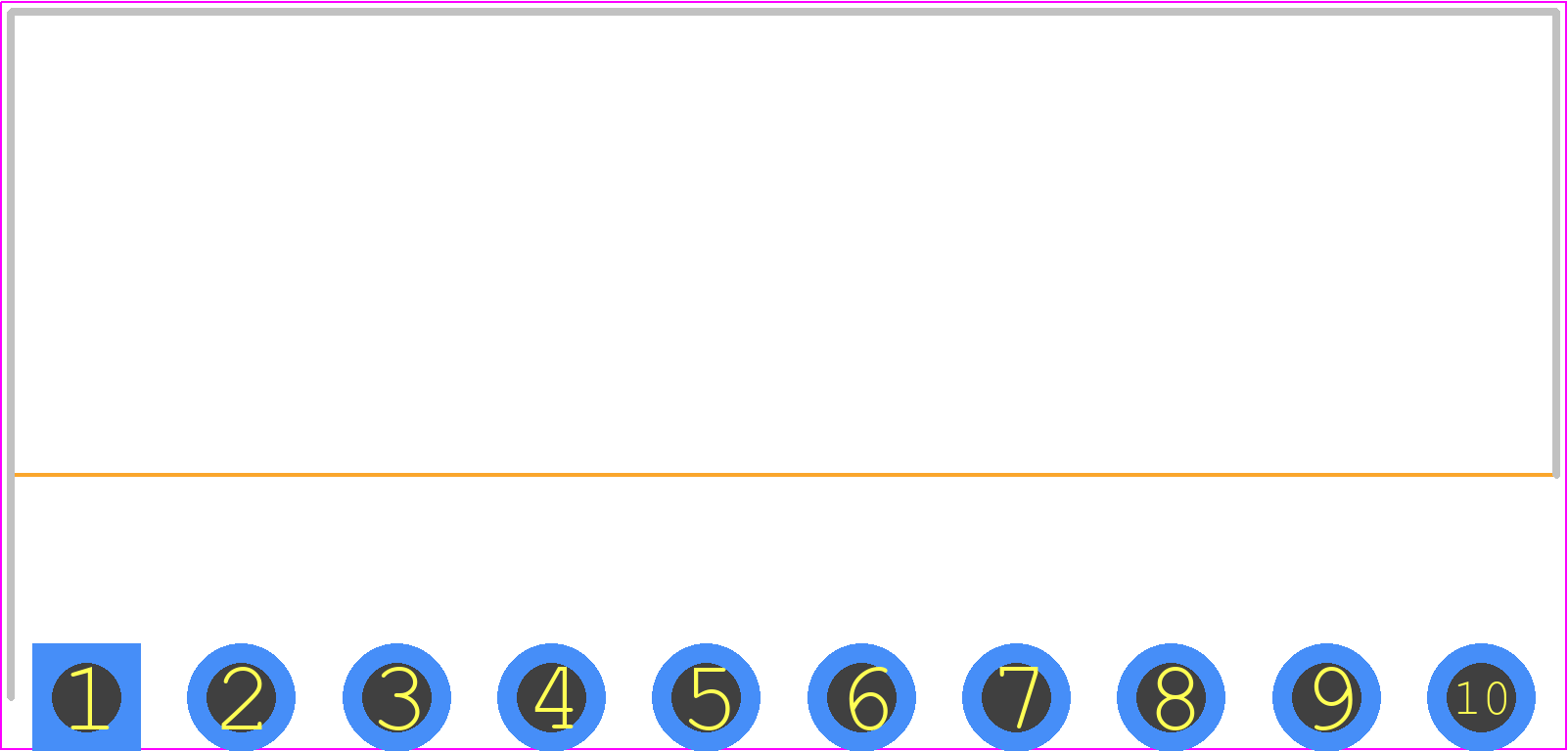

Use the download button to access the 26-61-5100 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 26-61,
or try a keyword search, such as Headers and Edge Type Connectors
