2604-1109 - Wago

Description: PCB terminal block; lever; 4 mm²; Pin spacing 5 mm; 9-pole; Push-in CAGE CLAMP®

Download 2604-1109 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

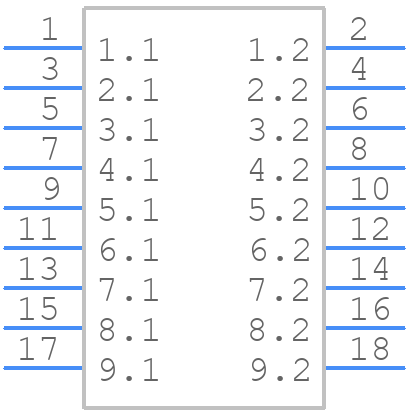

Symbol
2604-1109 - Wago - PCB symbol
click to zoom

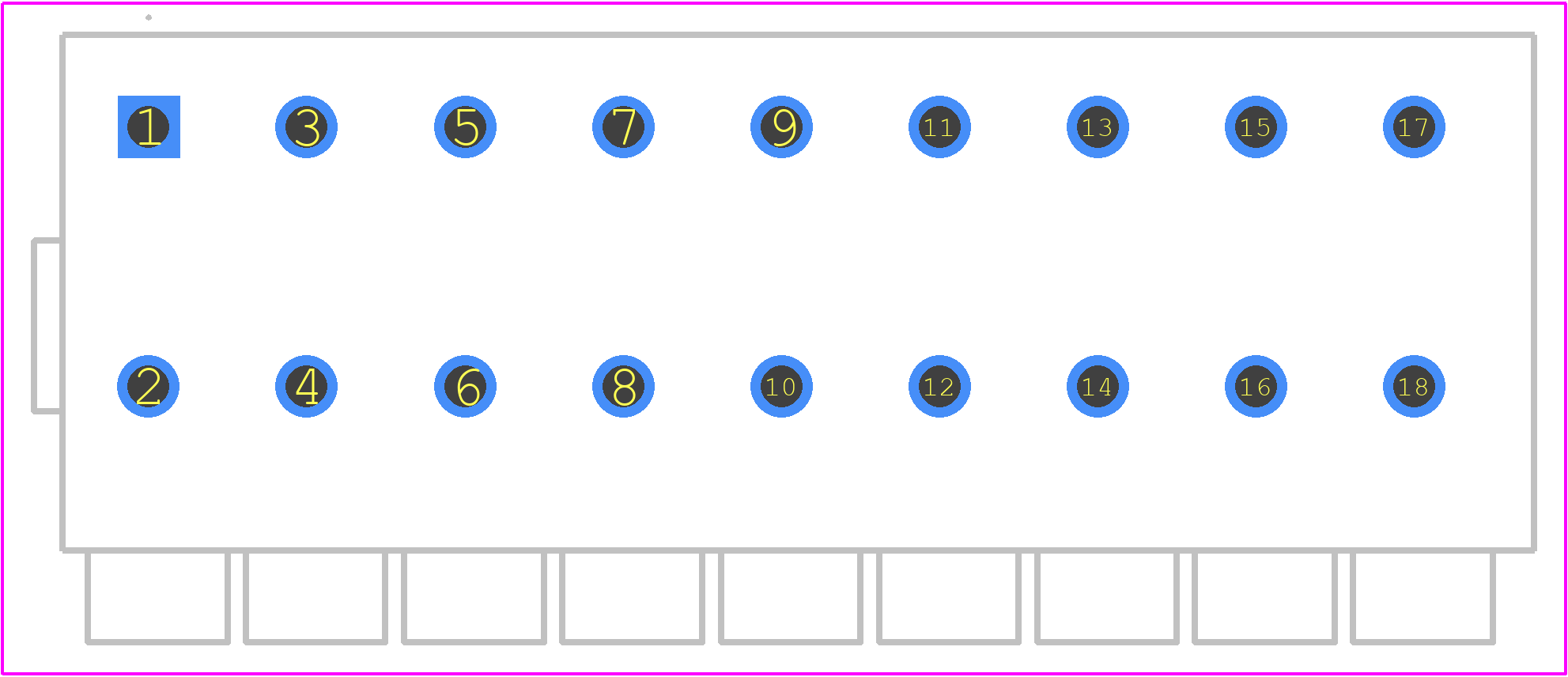

PCB Footprints
2604-1109 - Wago PCB footprint - Other - Other - 2604-1109
click to zoom
3D Models
2604-1109 - Wago - 3D model - Other - 2604-1109
click to zoom

2604-1109 Details

  • Manufacturer Part Number:

    2604-1109

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

2604-1109 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals is 0.6 Nm to 1.2 Nm (5 in-lbs to 10 in-lbs) to ensure secure connections.
  • Yes, the 2604-1109 connector is designed to withstand high-vibration environments, making it suitable for use in industrial and transportation applications.
  • Yes, the 2604-1109 connector has a rating of IP67, which means it is protected against dust and water ingress, making it suitable for outdoor use.
  • The 2604-1109 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications.
  • Yes, the 2604-1109 connector is designed to accept stranded wire, but it's recommended to use a ferrule or wire end sleeve to ensure a secure connection.

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2604-1109 Overview

Use the download button to access the 2604-1109 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2604-, or try a keyword search, such as Terminals and Terminal Blocks
