2604-1306 - Wago

Description: PCB terminal block; lever; 4 mm²; Pin spacing 7.5 mm; 6-pole; Push-in CAGE CLAMP®

Download 2604-1306 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

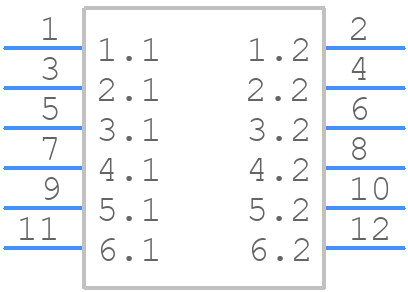

2604-1306 - Wago - PCB symbol
click to zoom
PCB Footprints

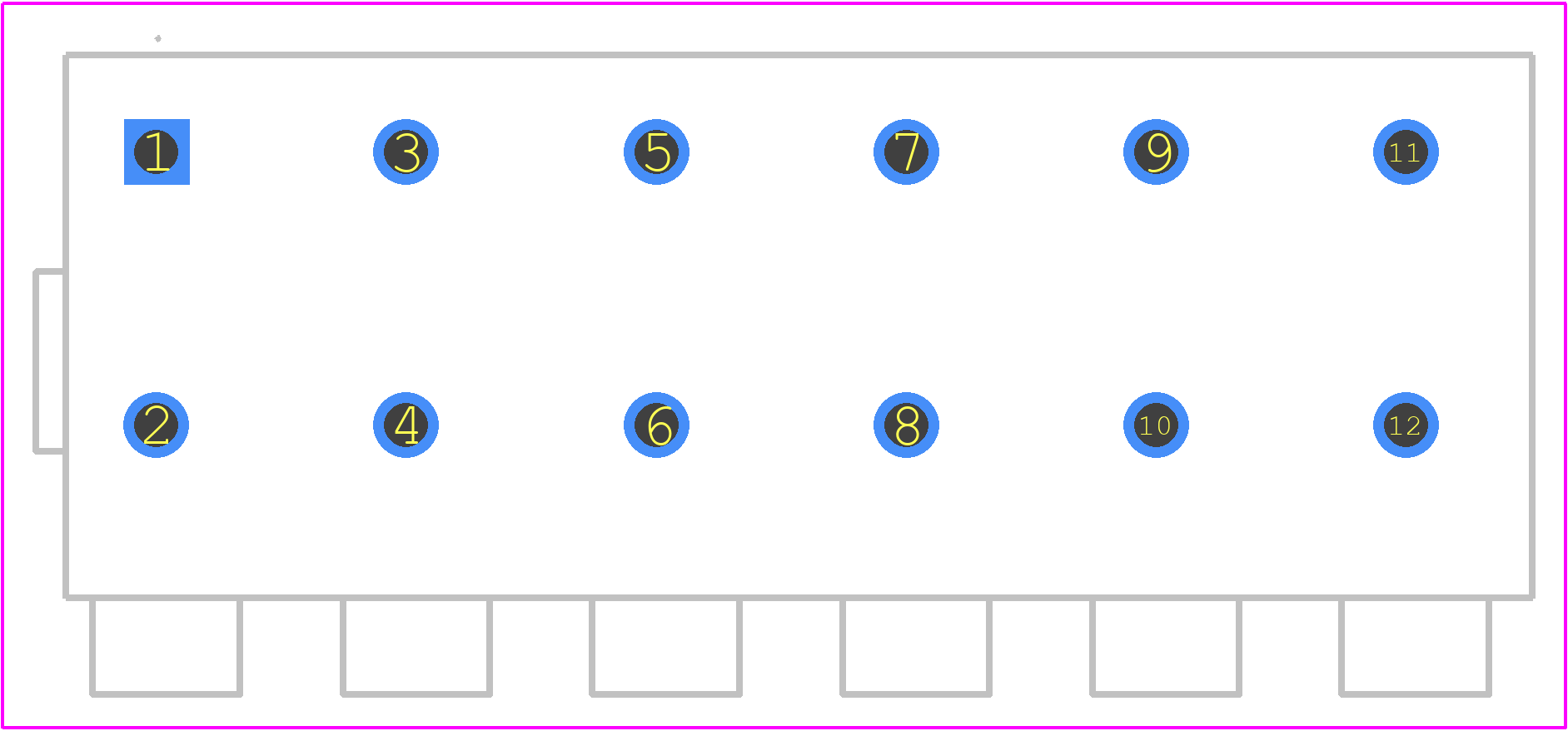

2604-1306 - Wago PCB footprint - Other - Other - 2604-1306
click to zoom
3D Models
2604-1306 - Wago - 3D model - Other - 2604-1306
click to zoom

2604-1306 Details

  • Manufacturer Part Number:

    2604-1306

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

2604-1306 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.2 Nm, depending on the wire size and type.
  • Yes, the 2604-1306 connector is designed to withstand high-vibration environments, with a vibration resistance of up to 10g according to IEC 60068-2-6.
  • Yes, the 2604-1306 connector has a rating of IP67, making it suitable for outdoor use and providing protection against dust and water ingress.
  • The maximum operating temperature for the 2604-1306 connector is 125°C, making it suitable for use in high-temperature applications.
  • Yes, the 2604-1306 connector is designed to accept stranded wires, but it's recommended to use wires with a minimum strand count of 30 to ensure reliable connections.
