2604-3103 - Wago

Description: PCB terminal block; lever; 4 mm²; Pin spacing 5 mm; 3-pole; Push-in CAGE CLAMP®

Download 2604-3103 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2604-3103 - Wago - PCB symbol
click to zoom
PCB Footprints

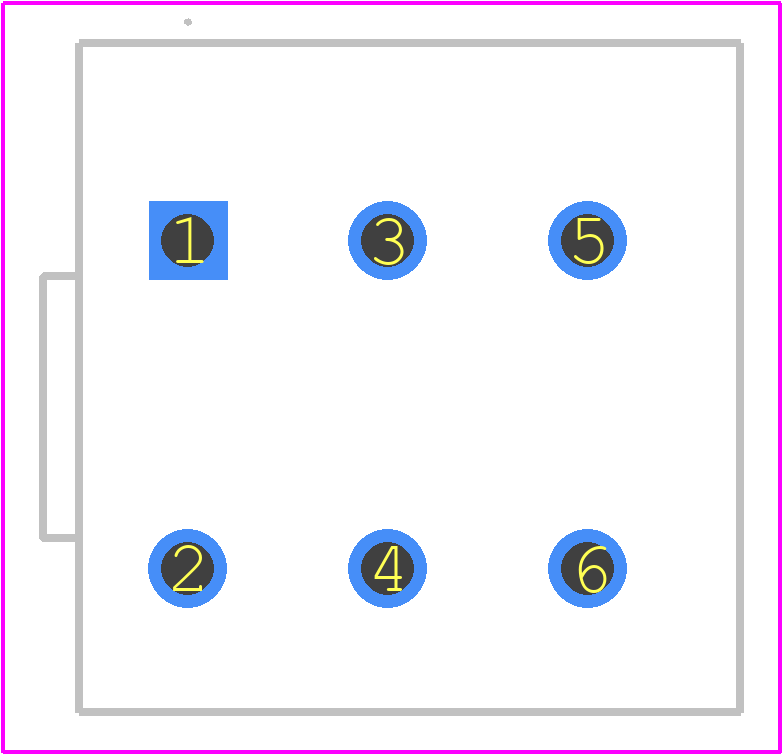

2604-3103 - Wago PCB footprint - Other - Other - 2604-3103-1
click to zoom
3D Models
2604-3103 - Wago - 3D model - Other - 2604-3103-1
click to zoom

2604-3103 Details

  • Manufacturer Part Number:

    2604-3103

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL94V-0, POLYAMIDE66

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    3

  • Rated Current:

    20 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; CUL; IEC/EN; KEMA; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    4 mm2

  • Wire Gauge:

    12 AWG

2604-3103 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals is 0.5 Nm to 1.5 Nm. It's essential to follow the recommended torque to ensure reliable connections and prevent damage to the terminals.
  • Yes, the 2604-3103 connector is designed to withstand high-vibration environments. The connector's screw terminals and cage clamp design ensure reliable connections even in harsh environments.
  • Yes, the 2604-3103 connector is suitable for outdoor use. The connector's materials and design ensure resistance to environmental factors like moisture, dust, and UV radiation.
  • Yes, the 2604-3103 connector is compatible with stranded wires. However, it's essential to follow the recommended wire preparation and termination procedures to ensure reliable connections.
  • The maximum operating temperature for the 2604-3103 connector is 120°C (248°F). It's essential to ensure the connector is used within the recommended temperature range to maintain its performance and reliability.
