2606-1102 - Wago

Description: PCB terminal block; lever; 6 mm²; Pin spacing 7.5 mm; 2-pole; Push-in CAGE CLAMP®

Download 2606-1102 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2606-1102 - Wago - PCB symbol
click to zoom
PCB Footprints

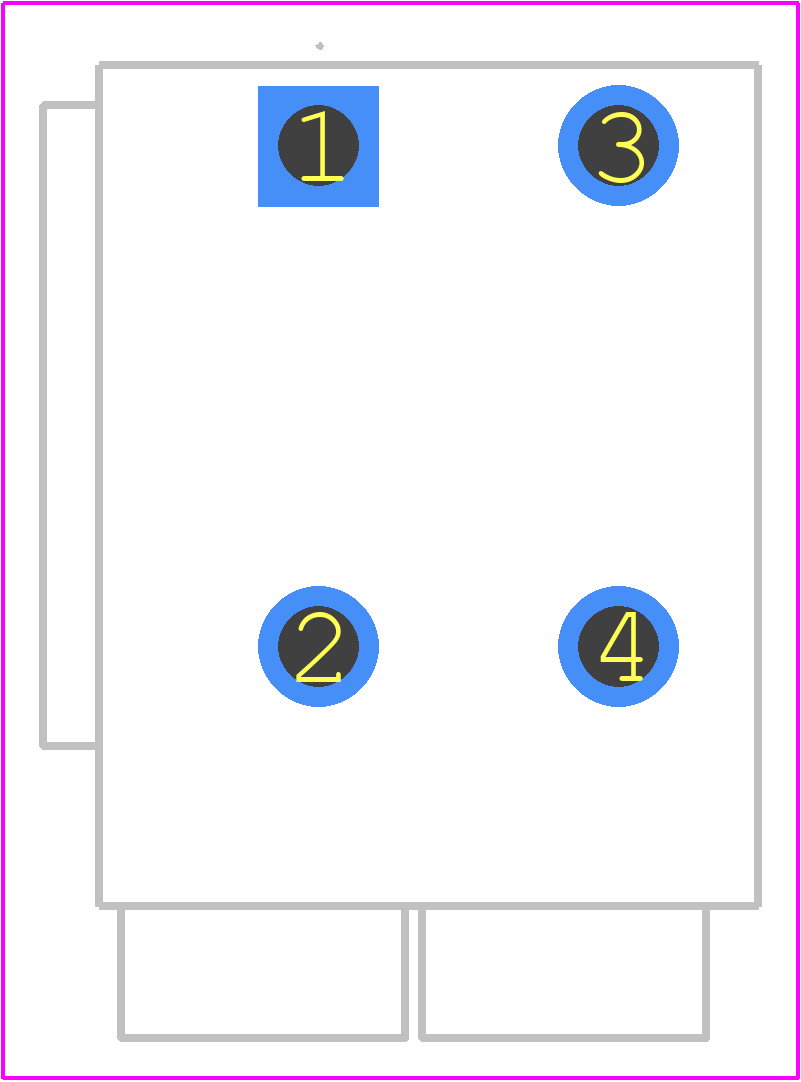

2606-1102 - Wago PCB footprint - Other - Other - 2606-1102-1
click to zoom
3D Models
2606-1102 - Wago - 3D model - Other - 2606-1102-1
click to zoom

2606-1102 Details

  • Manufacturer Part Number:

    2606-1102

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    6.86

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    2

  • Rated Current:

    51 A

  • Rated Voltage:

    690 V

  • Safety Approval:

    CB; CSA; CUL; KEMA; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    10 mm2

  • Wire Gauge:

    8 AWG

2606-1102 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.6 Nm to 0.8 Nm (5.3 in-lbs to 7.1 in-lbs).
  • Yes, the 2606-1102 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Cat. 1, Class B.
  • Yes, the 2606-1102 connector is rated IP67, making it suitable for outdoor use and providing protection against dust and water ingress.
  • The maximum operating temperature range for the 2606-1102 connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 2606-1102 connector is designed to accept stranded wire with a wire size range of 0.5 mm² to 2.5 mm² (20 AWG to 14 AWG).
