2616-1102/020-000 - Wago

Description: PCB terminal block; lever; 16 mm²; Pin spacing 10 mm; 2-pole; Push-in CAGE CLAMP®

Download 2616-1102/020-000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

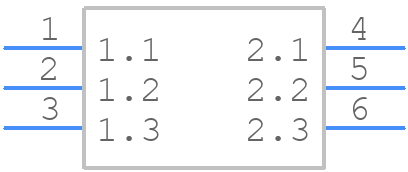

2616-1102/020-000 - Wago - PCB symbol
click to zoom
PCB Footprints

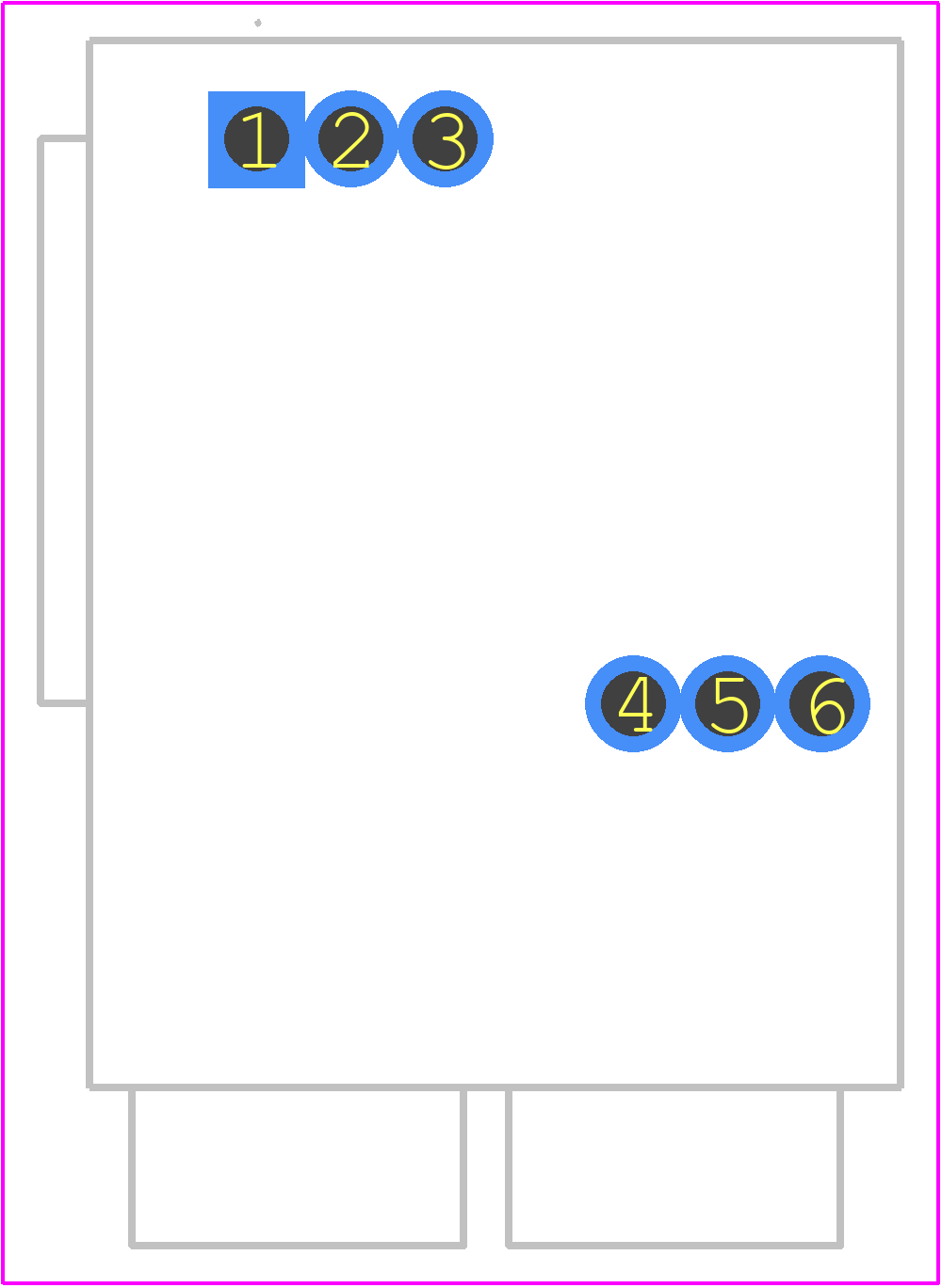

2616-1102/020-000 - Wago PCB footprint - Other - Other - 2616-1102/020-000-1
click to zoom
3D Models
2616-1102/020-000 - Wago - 3D model - Other - 2616-1102/020-000-1
click to zoom

2616-1102/020-000 Details

  • Manufacturer Part Number:

    2616-1102/020-000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    6.57

  • Additional Feature:

    STANDARD: UL 94V-0; PA66

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    2

  • Packing Method:

    BOX

  • Rated Current:

    66 A

  • Rated Voltage:

    600 V

  • Safety Approval:

    CB; CSA; CUL; EN; IEC; KEMA

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    16 mm2

  • Wire Gauge:

    4 AWG

2616-1102/020-000 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 2616-1102/020-000 connector is 0.6 Nm to 1.2 Nm (5-10 lbf-in).
  • Yes, the 2616-1102/020-000 connector is suitable for outdoor use, as it has a IP67 rating, which provides protection against dust and water ingress.
  • Yes, the 2616-1102/020-000 connector is designed to withstand high-vibration environments, making it suitable for use in industrial and transportation applications.
  • The 2616-1102/020-000 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F).
  • Yes, the 2616-1102/020-000 connector is designed for use in automation systems, including industrial control systems, robotics, and machine building applications.

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2616-1102/020-000 Overview

Use the download button to access the 2616-1102/020-000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2616-, or try a keyword search, such as Terminals and Terminal Blocks

Parts related to 2616-1102/020-000
