262-75ABE-01 - Wakefield Thermal

Description: Heat Sinks Horizontal and Vertical Mount Heat Sink for TO-220, Aluminum, 13.4x12.7x19.1mm

Download 262-75ABE-01 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
262-75ABE-01 - Wakefield Thermal - PCB symbol
click to zoom
PCB Footprints

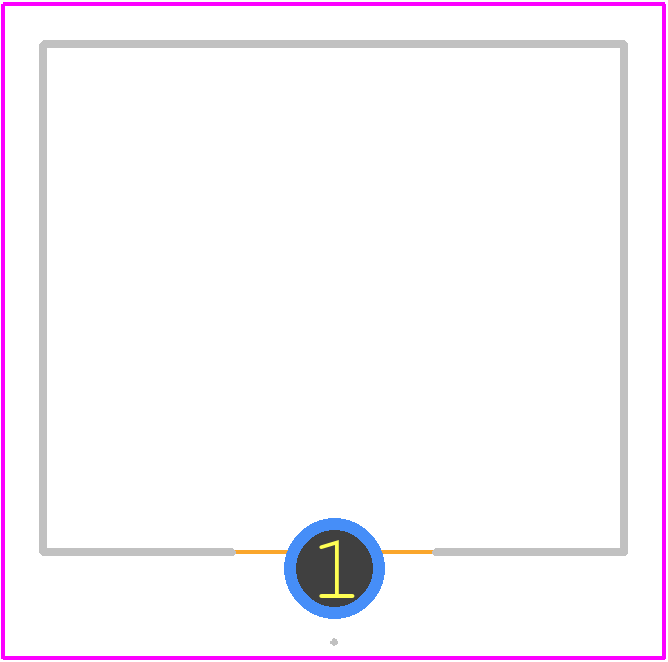

262-75ABE-01 - Wakefield Thermal PCB footprint - Other - Other - 262-75ABE-01-3
click to zoom
3D Models
262-75ABE-01 - Wakefield Thermal - 3D model - Other - 262-75ABE-01-3
click to zoom

262-75ABE-01 Details

  • Manufacturer Part Number:

    262-75ABE-01

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.90.00.00

  • Manufacturer:

    Wakefield-Vette

  • Body Material:

    ALUMINUM

  • Color:

    BLACK

  • Construction:

    FIN

  • Finish:

    ANODIZED

  • Height:

    19.1 mm

  • Length:

    13.4 mm

  • Thermal Support Device Type:

    HEAT SINK

  • Width:

    12.7 mm

262-75ABE-01 Frequently Asked Questions (FAQs)

  • Wakefield-Vette recommends using a thermal interface material with a thermal conductivity of at least 1 W/m-K, such as thermal grease or thermal tape, to ensure optimal heat transfer between the heat sink and the device.
  • While the 262-75ABE-01 is designed to be rugged, it's recommended to consult with Wakefield-Vette's application engineers to determine the suitability of this heat sink for high-vibration environments. Additional mechanical fastening or custom designs may be required.
  • The maximum operating temperature of the 262-75ABE-01 is 125°C (257°F), as specified by Wakefield-Vette. Exceeding this temperature may affect the heat sink's performance and longevity.
  • Yes, Wakefield-Vette offers customization options for their heat sinks, including modifications to the design, material, and finish. Contact their application engineers to discuss your specific requirements.
  • The lead time for the 262-75ABE-01 heat sink varies depending on the quantity and availability. Typically, Wakefield-Vette quotes a lead time of 4-6 weeks for standard orders, but this may be shorter or longer depending on the specific circumstances.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

262-75ABE-01 Overview

Use the download button to access the 262-75ABE-01 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 262-7, or try a keyword search, such as Heat Sinks

About Wakefield Thermal

Wakefield Thermal provides thermal solutions for customers in aerospace, LED lighting, automation, consumer electronics, medical devices, renewable energy, telecommunications, and transportation. They manufacture thermal extrusions, LED head sinks, heat frames, and pipes, fans, heat exchangers, and coolant distribution units. Headquartered in Nashua, New Hampshire, Wakefield Thermal has manufacturing facilities in North America and Dongguan, China.
