2624-1106 - Wago

Description: PCB terminal block; 4 mm²; Pin spacing 5 mm; 6-pole; Push-in CAGE CLAMP®

Download 2624-1106 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

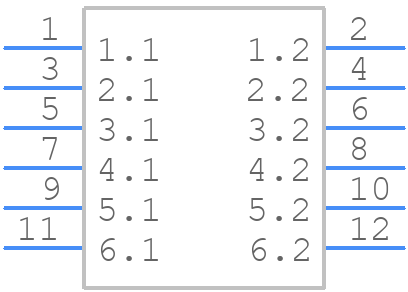

2624-1106 - Wago - PCB symbol
click to zoom
PCB Footprints

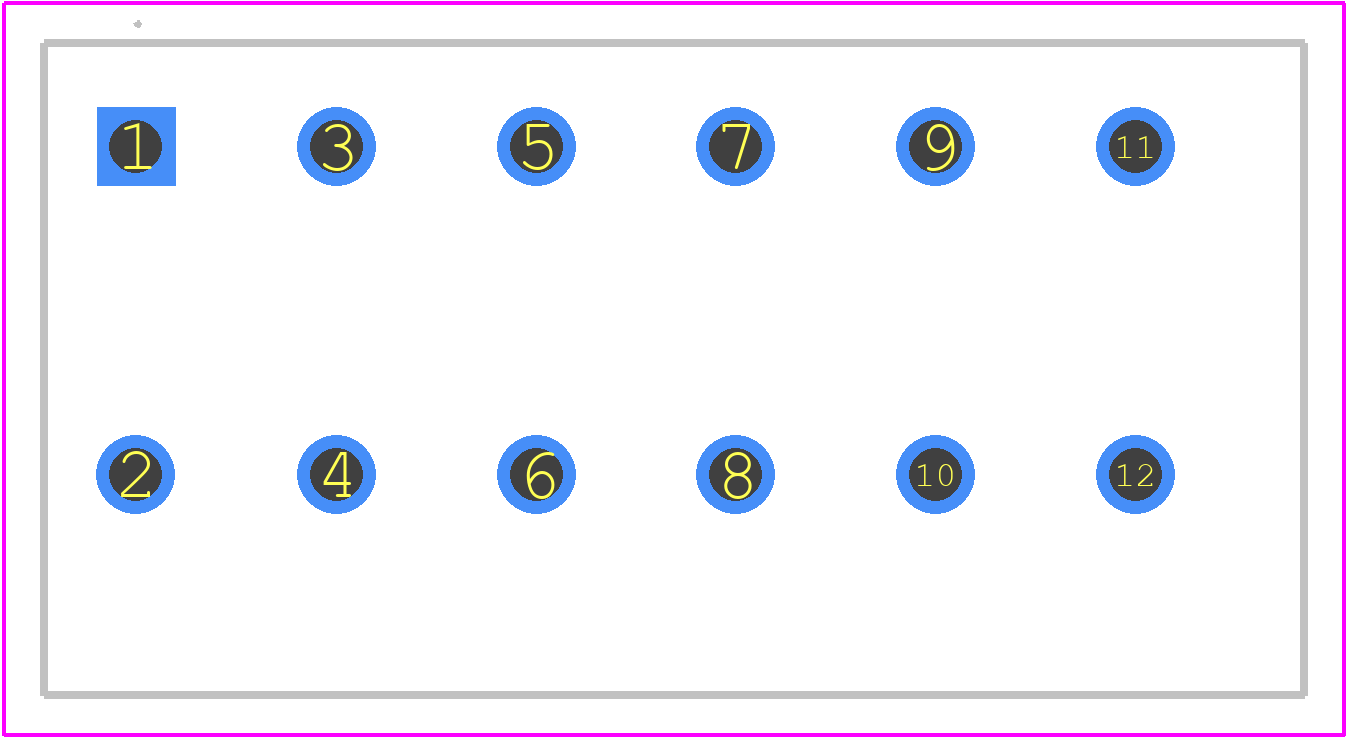

2624-1106 - Wago PCB footprint - Other - Other - 2624-1106-5
click to zoom
3D Models
2624-1106 - Wago - 3D model - Other - 2624-1106-5
click to zoom

2624-1106 Details

  • Manufacturer Part Number:

    2624-1106

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

2624-1106 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals on the 2624-1106 connector is 0.6 Nm to 0.8 Nm (5.3 in-lbs to 7.1 in-lbs).
  • Yes, the 2624-1106 connector is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 60068-2-6 and DIN EN 61373.
  • Yes, the 2624-1106 connector is suitable for outdoor use. It has a rating of IP67, which means it is protected against dust and water ingress.
  • The minimum wire size that can be used with the 2624-1106 connector is 0.5 mm² (AWG20).
  • No, the 2624-1106 connector is not designed for use in explosive atmospheres. It does not meet the requirements of ATEX or IECEx.
