2624-3303 - Wago

Description: PCB terminal block; 4 mm²; Pin spacing 7.5 mm; 3-pole; Push-in CAGE CLAMP®

Download 2624-3303 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2624-3303 - Wago - PCB symbol
click to zoom
PCB Footprints

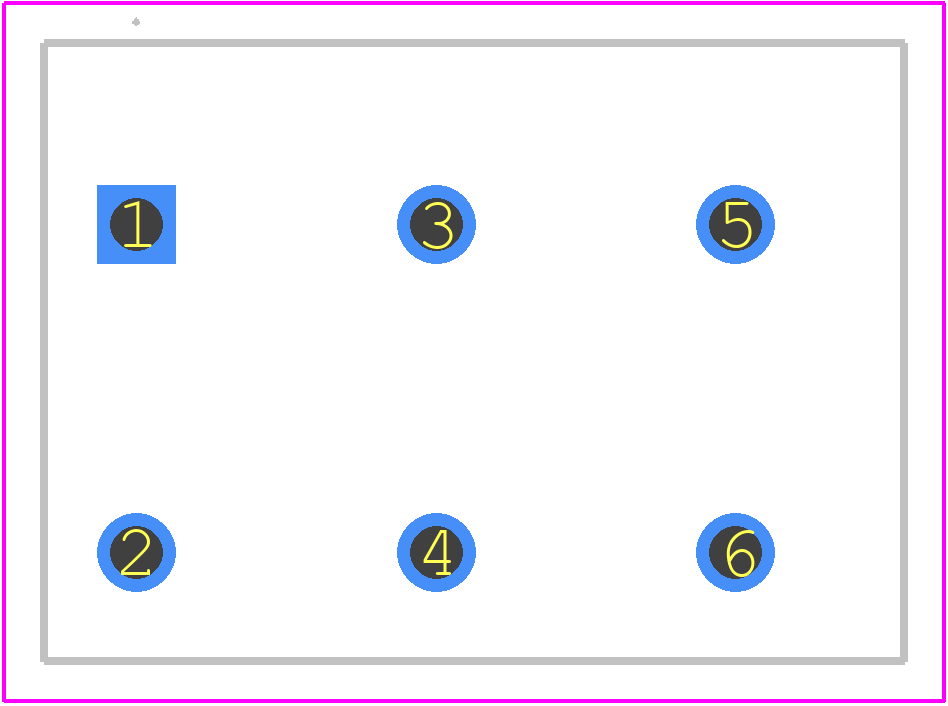

2624-3303 - Wago PCB footprint - Other - Other - 2624-3303-2
click to zoom
3D Models
2624-3303 - Wago - 3D model - Other - 2624-3303-2
click to zoom

2624-3303 Details

  • Manufacturer Part Number:

    2624-3303

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK
