2636-3101 - Wago

Description: PCB terminal block; 16 mm²; Pin spacing 10 mm; 1-pole; Push-in CAGE CLAMP®; 16,00 mm²; gray

Download 2636-3101 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2636-3101 - Wago - PCB symbol
click to zoom
PCB Footprints

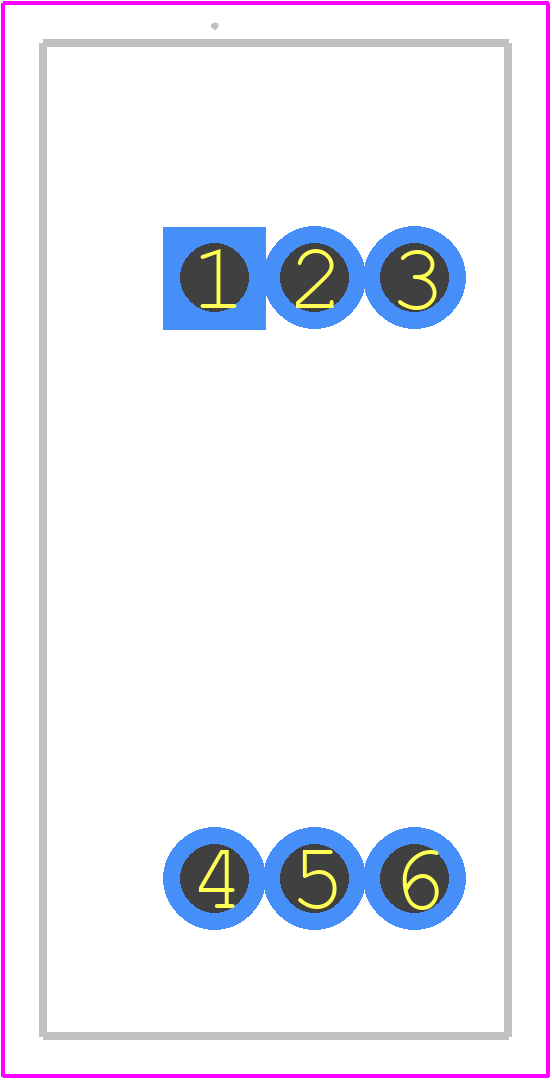

2636-3101 - Wago PCB footprint - Other - Other - 2636-3101-1
click to zoom
3D Models
2636-3101 - Wago - 3D model - Other - 2636-3101-1
click to zoom

2636-3101 Details

  • Manufacturer Part Number:

    2636-3101

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    94V-0, POLYAMIDE

  • Fastening Method:

    PUSH-IN

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    1

  • Rated Current:

    76 A

  • Rated Voltage:

    600 V

  • Safety Approval:

    CSA; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    16 mm2

  • Wire Gauge:

    4 AWG

2636-3101 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.2 Nm, depending on the wire size and type. It's essential to follow the torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2636-3101 connector is designed to withstand high-vibration environments. The connector's rugged design and secure screw terminals ensure reliable connections even in applications with intense vibrations.
  • The 2636-3101 connector has a IP67 rating, making it suitable for outdoor use and harsh environments. The connector's design and materials provide protection against dust, water, and other environmental factors.
  • Yes, the 2636-3101 connector is designed to accommodate stranded wires. However, it's essential to follow the manufacturer's guidelines for wire preparation and termination to ensure reliable connections.
  • The 2636-3101 connector has an operating temperature range of -40°C to 125°C, making it suitable for a wide range of applications, including industrial, automotive, and aerospace.

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2636-3101 Overview

Use the download button to access the 2636-3101 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2636-, or try a keyword search, such as Terminals and Terminal Blocks
