Part Image

2636-3355 - Wago

Description: PCB terminal block; 16 mm²; Pin spacing 15 mm; 5-pole; Push-in CAGE CLAMP®

Download 2636-3355 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

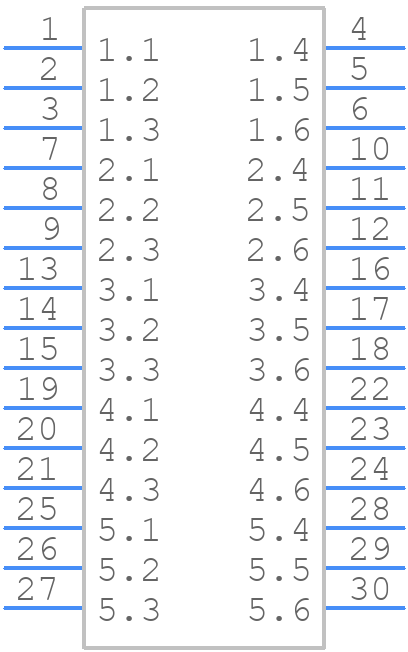

Symbol
2636-3355 - Wago - PCB symbol
click to zoom

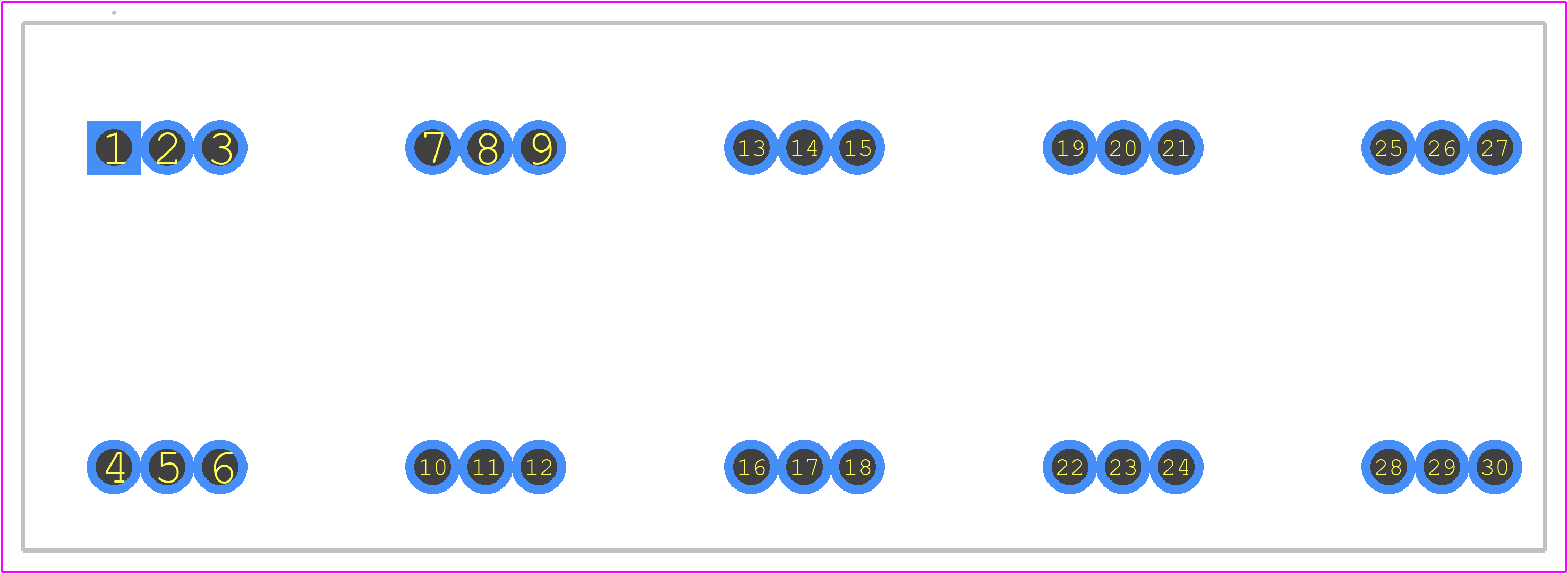

PCB Footprints
2636-3355 - Wago PCB footprint - Other - Other - 2636-3355-2
click to zoom
3D Models
2636-3355 - Wago - 3D model - Other - 2636-3355-2
click to zoom

2636-3355 Details

  • Manufacturer Part Number:

    2636-3355

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2636-3355 Overview

Use the download button to access the 2636-3355 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2636-, or try a keyword search, such as Terminals and Terminal Blocks
